Dixon® VR4086

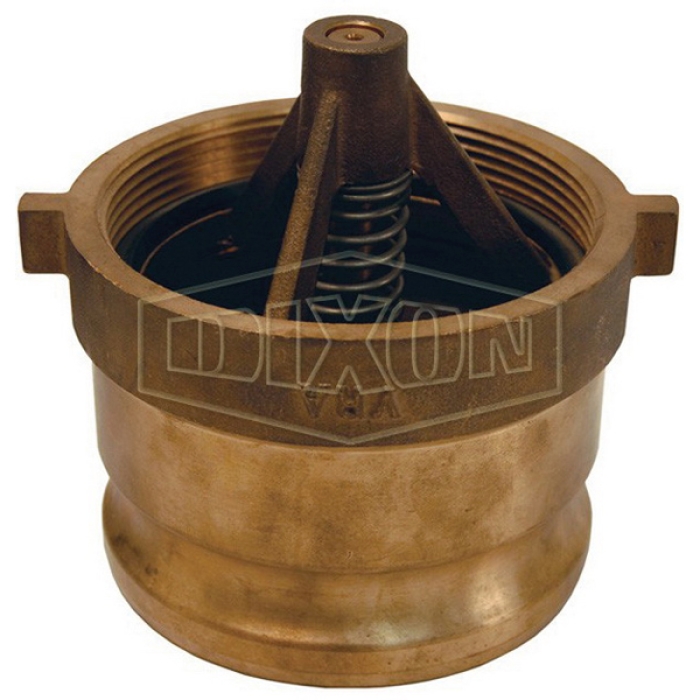

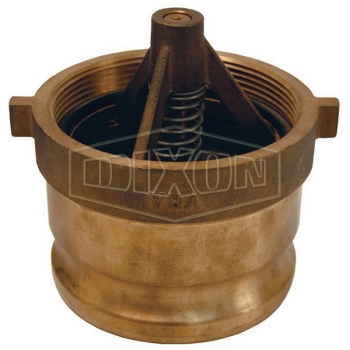

Dixon® VR4086 Brass Vapor Recovery Tank Adapter, 4 in Male Adapter x 4 in FNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN VR4086
  • MPN: VR4086
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Vapor Recovery Tank Adapter, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 4 in, Brass, Dimensions: 3-5/8 in H, For Use With: VR6200 Series Dual Point Vapor Recovery Elbows

California residents see Prop 65 WARNINGS

Connection Size 1      :      4 in
Connection Size 2      :      4 in
Material      :      Brass
Dimensions      :      3-5/8 in H
Fitting Type      :      Adapter
For Use With      :      VR6200 Series Dual Point Vapor Recovery Elbows
Connection 1      :      4 in Fitting
Connection 2      :      4 in NPT
Connection Type 1      :      Fitting
Connection Type 2      :      NPT
Gender 1      :      Male
Gender 2      :      Female
  • With outlet poppet valves to prevent fuel vapors from escaping, poppet opens when vapor elbow is connected
  • Low profile design
  • Poppeted vapor collar at station vapor outlet
  • Rugged bronze construction
  • Manufactured with 4 pipe threads to connect to in-ground fuel tanks and than provide an interface to connect the vapor recovery elbows, can be used as vapor valve on a fuel tanker (does not have mount for air interlock)

Applications: When fuel is delivered to the fuel station, vapor recovery elbows are connected to the in-ground tank adapters. The vapor adapter is threaded to the in-ground tank vapor outlet connection
