Dixon® 188-20

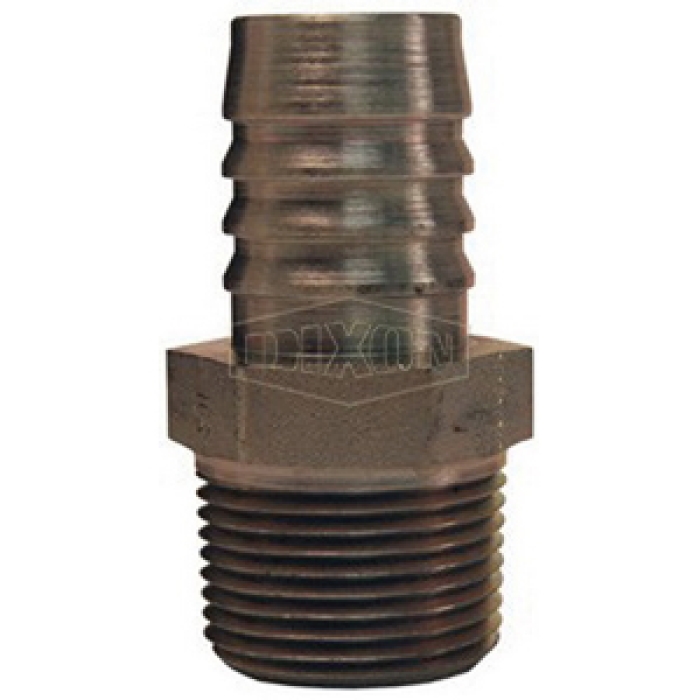

Dixon® 188-20 Plated Steel Hydraulic Suction and Return Line Hose Coupling, 1-1/4 in Hose Barb x 1-1/4 in MNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 188-20
  • MPN: 188-20
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Hydraulic Suction and Return Line Hose Coupling, Connection Type 1: Hose Barb, Connection Size 1: 1-1/4 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1-1/4 in, Thread Size 2: 1-1/4-11-1/2, Steel, Finish: Plated

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupling
Connection 1      :      1-1/4 in Hose Barb
Connection Size 1      :      1-1/4 in
Connection Type 1      :      Hose Barb
Connection 2      :      1-1/4 in NPT
Connection Size 2      :      1-1/4 in
Connection Type 2      :      NPTF
Gender 2      :      Male
Thread Size 2      :      1-1/4-11-1/2
Material      :      Steel
Finish      :      Plated
  • Barbs provide easy assembly and maximum gripping action
  • Return line clamps must be used with these fittings

Applications: Designed and machined for hydraulic suction line applications using SAE100R4 hydraulic hose
