410-356-0003
.png)

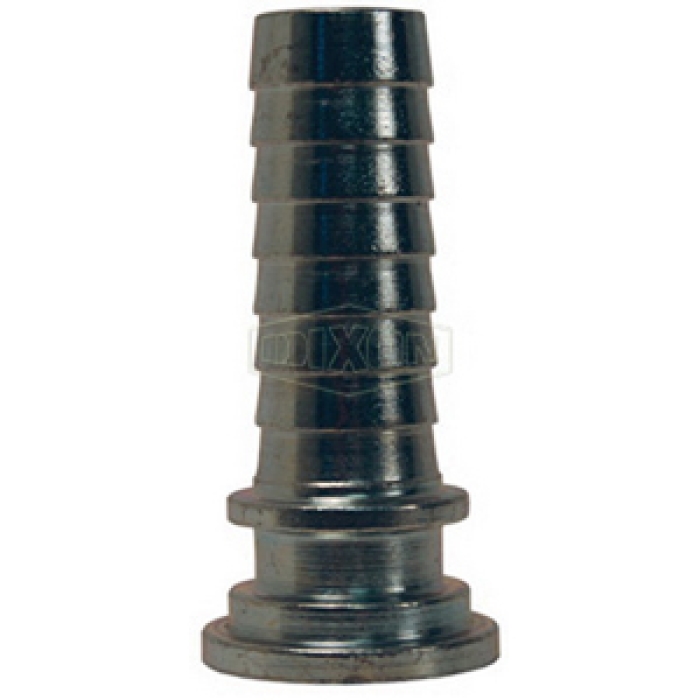

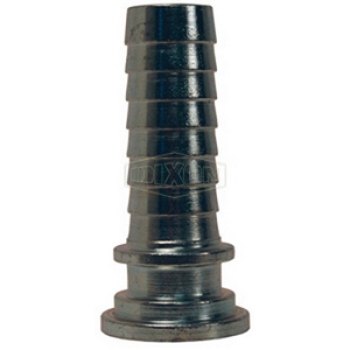

Dixon® Boss™ Washer Seal Stem, Connection Type 1: Hose Stem, Connection Size 1: 3/4 in, Connection Type 2: NPT, Connection Size 2: 3/4 in, Steel, Finish: Plated, For Use With: Boss™ Clamps, Dimensions: 1-11/16 in Dia x 3-11/32 in L
California residents see Prop 65 WARNINGS
| Fitting Type | : | Stem |
| Connection 1 | : | 3/4 in Hose Stem |
| Connection Size 1 | : | 3/4 in |
| Connection Type 1 | : | Hose Stem |
| Connection 2 | : | 3/4 in NPT |
| Connection Size 2 | : | 3/4 in |
| Connection Type 2 | : | NPT |
| Material | : | Steel |
| Finish | : | Plated |
| For Use With | : | Boss™ Clamps |
| Dimensions | : | 1-11/16 in Dia x 3-11/32 in L |
- The stem part that is clamped to the hose is one part of the Boss™ washer seal connection
- The Boss™ washer seal spud part of the coupling serves as the other half of the connection and is usually fixed to the equipment
- The two halves are connected or disconnected by rotating the wing nut on the spud
- A leak-proof seal forms by rotating the wing nut and hammering it tight
- Easy-to-seal
- A Klingersil® C-4401 washer is inserted between the stem and spud
- Recommended for steam service up to 450 deg F
- Boss™ couplings supply a convenient threaded fitting to connect two lengths of hose or a single length to a male or female threaded outlet
Applications: For steam hose connections, air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1 in ID
Catalog/Catalog Cut Sheet
