Dixon® RSTB10

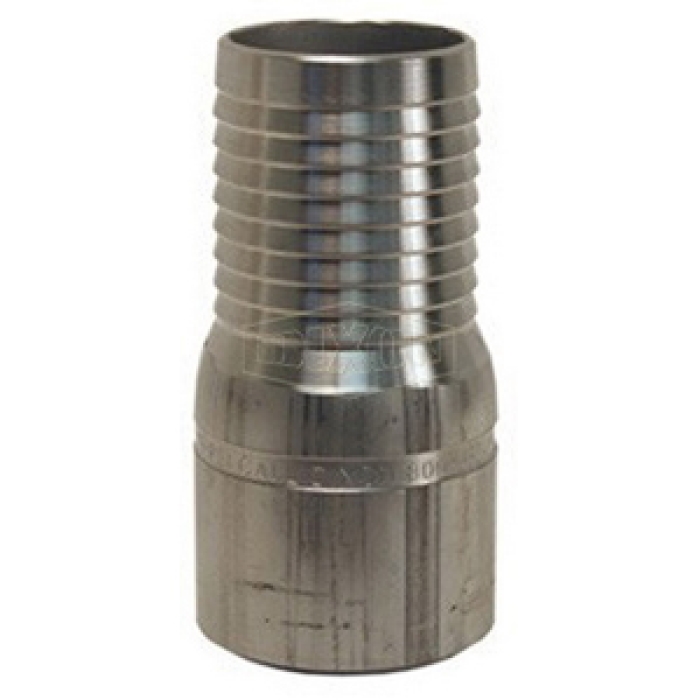

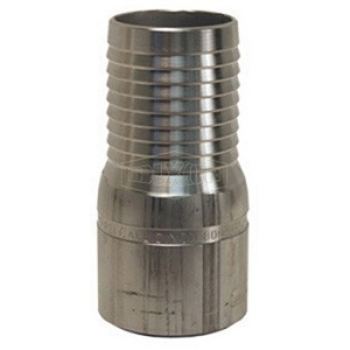

Dixon® King™ RSTB10 316 Stainless Steel Combination Nipple, 1 in Hose x 1 in Beveled End

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN RSTB10
  • MPN: RSTB10
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® King™ Combination Nipple, Connection Type 1: Hose, Connection Size 1: 1 in, Connection Type 2: Beveled End, Connection Size 2: 1 in, 316 Stainless Steel, 1-5/16 in Diameter, 3-1/2 in Length

California residents see Prop 65 WARNINGS

Fitting Type      :      Nipple
Connection 1      :      1 in Hose
Connection Size 1      :      1 in
Connection Type 1      :      Hose
Connection 2      :      1 in Beveled End
Connection Size 2      :      1 in
Connection Type 2      :      Beveled End
Material      :      316 Stainless Steel

Applications: Recommended for low-pressure discharge and suction service for compatible liquids

Safety Notes:

  • King combination nipples are not recommended for steam.
  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • Consult Dixon® for recommendations.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for 15 min without leaking or coupling movement.
  • For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
