Aeroquip® 4797-8B
Send Print
  1. pin-int

Aeroquip® 4797-8B

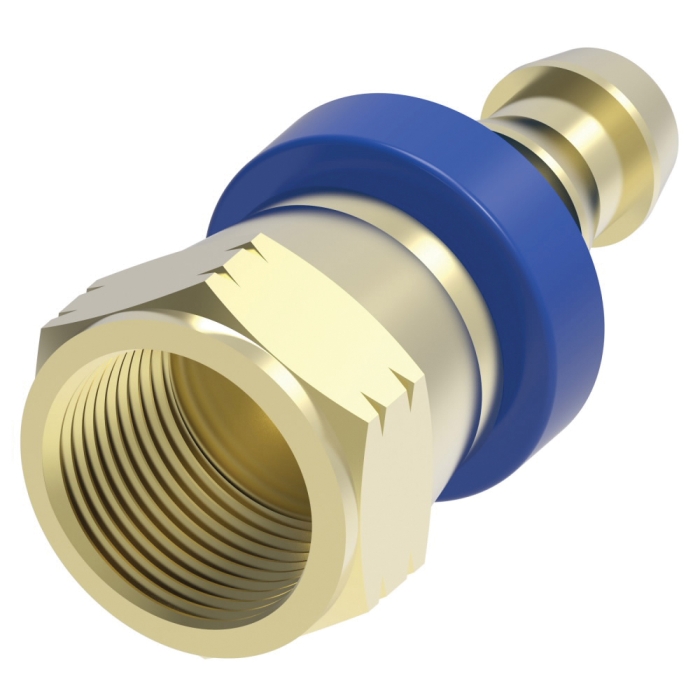

Aeroquip® 4797 Brass Female SAE 45 deg/37 deg JIC Socketless Reusable Straight Hose Fitting, 1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 4797-8B
  • MPN: 4797-8B
  • UPC: 678146138446
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Socketless Reusable Straight Hose Fitting, 4797 Series, Hose Connection: 1/2 in, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: SAE 45 deg/37 deg JIC, Gender 2: Female, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Thread Size 2: 3/4-16, Hex Size: 7/8 in, Cut-Off Factor: 0.93 in, Brass, For Use With: 2556, 2565, 2575, FC332, FC647, and H201 Series Hoses, Dimensions: 1.95 in L x 0.875 in W x 0.875 in H

California residents see Prop 65 WARNINGS

Fitting Type      :      Straight Hose Fitting
Gender 2      :      Female
Connection Size 2      :      1/2 in
Nominal Size      :      1/2 in
Thread Size 2      :      3/4-16
Hex Size      :      7/8 in
Cut-Off Factor      :      0.93 in
Material      :      Brass
For Use With      :      2556, 2565, 2575, FC332, FC647, and H201 Series Hoses
Series      :      4797
Dimensions      :      1.95 in L x 0.875 in W x 0.875 in H
Hose Connection      :      1/2 in
Connection Type 1      :      Hose
Connection Size 1      :      1/2 in
Hose Dash Size      :      08
Connection 2      :      1/2 in JIC
Connection Type 2      :      SAE 45 deg/37 deg JIC
