Aeroquip® 4797-10B
Send Print
  1. pin-int

Aeroquip® 4797-10B

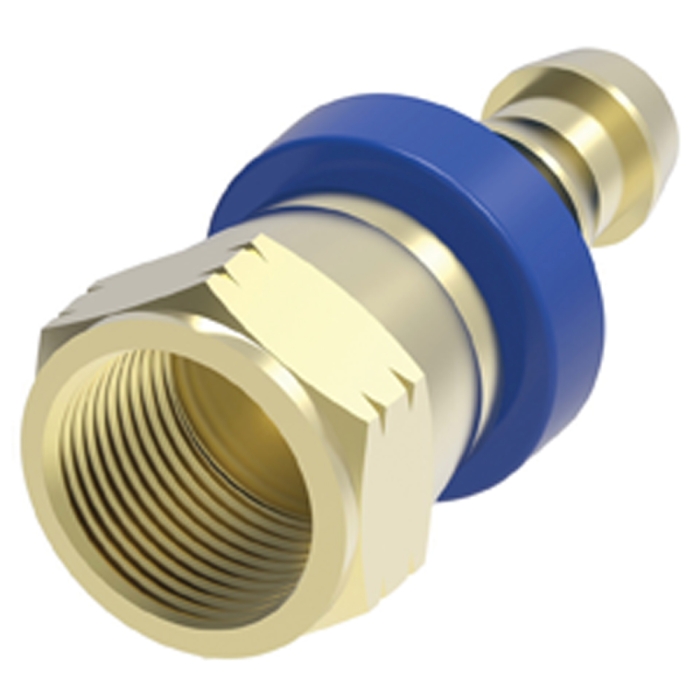

Aeroquip® 4797 Brass Female SAE 45 deg/37 deg JIC Socketless Reusable Straight Hose Fitting, 5/8 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 4797-10B
  • MPN: 4797-10B
  • UPC: 678146138422
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Socketless Reusable Straight Hose Fitting, 4797 Series, Hose Connection: 5/8 in, Connection Type 1: Hose, Connection Size 1: 5/8 in, Hose Dash Size: 10, Connection Type 2: SAE 45 deg/37 deg JIC, Gender 2: Female, Connection Size 2: 5/8 in, Nominal Size: 5/8 in, Thread Size 2: 7/8-14, Hex Size: 1 in, 300 psi, Cut-Off Factor: 1.06 in, Brass, For Use With: 2556, 2565, 2575, FC332, FC647, and H201 Series Hoses, Dimensions: 2.6 in L x 1 in W x 1 in H

California residents see Prop 65 WARNINGS

Fitting Type      :      Straight Hose Fitting
Gender 2      :      Female
Connection Size 2      :      5/8 in
Nominal Size      :      5/8 in
Thread Size 2      :      7/8-14
Hex Size      :      1 in
Pressure Rating      :      300 psi
Cut-Off Factor      :      1.06 in
Material      :      Brass
For Use With      :      2556, 2565, 2575, FC332, FC647, and H201 Series Hoses
Series      :      4797
Dimensions      :      2.6 in L x 1 in W x 1 in H
Hose Connection      :      5/8 in
Connection Type 1      :      Hose
Connection Size 1      :      5/8 in
Hose Dash Size      :      10
Connection 2      :      5/8 in JIC
Connection Type 2      :      SAE 45 deg/37 deg JIC
