Aeroquip® 16P HSN 16P | Tipco Technologies
Aeroquip® 16P
Send Print
  1. pin-int

Aeroquip® 16P

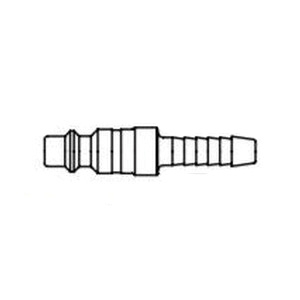

Aeroquip® Auto-Flo 23 Zinc-Plated Carbon Steel Coupling Plug, 1/4 in Male Quick Disconnect x 1/4 in Hose Barb, for Push-On Style Hose

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 16P
  • MPN: 16P
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling Plug, Auto-Flo 23 Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/4 in, Connection Type 2: Hose Barb, Connection Size 2: 1/4 in, Carbon Steel, Finish: Zinc-Plated, Dimensions: 2 in L x 0.58 in W, Dimension Standards: ISO 6150 Series B, -40 to 250 deg F, For Use With: Push-On Style Hose

Fitting Type      :      Plug
Connection Size 2      :      1/4 in
Material      :      Carbon Steel
Finish      :      Zinc-Plated
For Use With      :      Push-On Style Hose
Series      :      Auto-Flo 23
Dimensions      :      2 in L x 0.58 in W
Dimension Standards      :      ISO 6150 Series B
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      Quick Disconnect
Gender 1      :      Male
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in Hose Barb
Connection Type 2      :      Hose Barb

Danfoss's Auto-Flo 23/24 Series of pneumatic couplings were designed with high flow and easy automatic connection for compressed air in mind. The universal design makes the Auto-Flo an extremely flexible coupling Series.

  • Auto-Flo 23 is the first automatic universal quick disconnect coupling designed to operate with industrial, ARO 210 and Tru-Flate interchange plugs/males
  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line
  • Sleeve guard protects against accidental disconnection
  • Buna-N seal material

Applications: General pneumatics, industrial plants, construction
