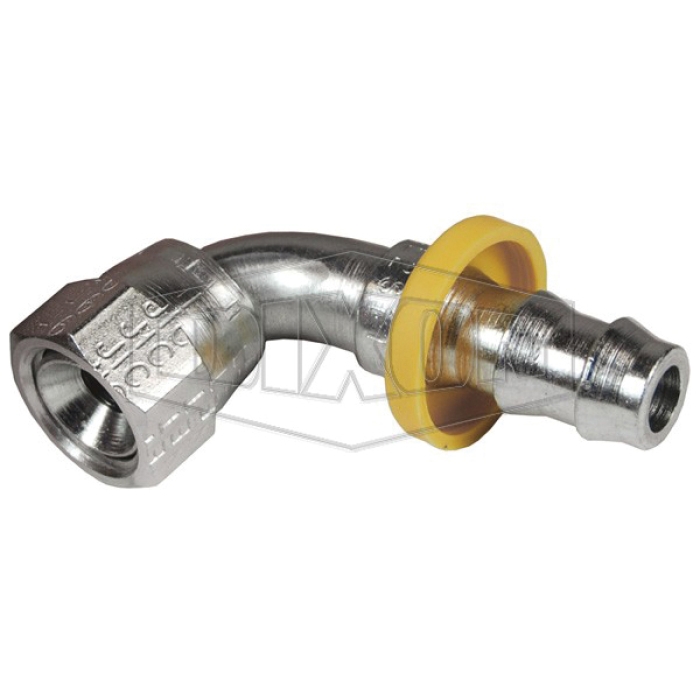

Dixon® Push-On 90 deg Elbow with Plastic Cap, Connection Type 1: Hose, Connection Size 1: 3/8 in, Connection Type 2: SAE 45 deg Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 5/8-18 UNF, 350 psi, Steel, Finish: Plated, -40 to 150 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | 90 deg Elbow |
| Gender 2 | : | Female |
| Connection Size 2 | : | 3/8 in |
| Thread Size 2 | : | 5/8-18 UNF |
| Pressure Rating | : | 350 psi |
| Material | : | Steel |
| Finish | : | Plated |
| Temperature Rating | : | -40 to 150 deg F |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 3/8 in |
| Connection 2 | : | 3/8 in SAE Swivel |
| Connection Type 2 | : | SAE 45 deg Swivel |
- Notch in nut for SAE identification
- Yellow plastic cap
Instructions:
- Trim hose end with a smooth square cut.
- Lubricate either Lok-on fitting, hose or both.
- Insert Lok-on fitting into hose until first barb is in the hose.
- Place end of fitting against a flat object (bench, wall) and grip the hose 1 in from the end.
- Push with a steady force until the end of the hose is covered by the yellow plastic cap.
Safety Notes:
- Dixon® push-on fittings are intended for use with Lok-On (push-on style) hose only.
- Lok-On fittings will properly grip Lok-On hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Catalog/Catalog Cut Sheet
