Dixon® 2960606CBC
Send Print
  1. pin-int

Dixon® 2960606CBC

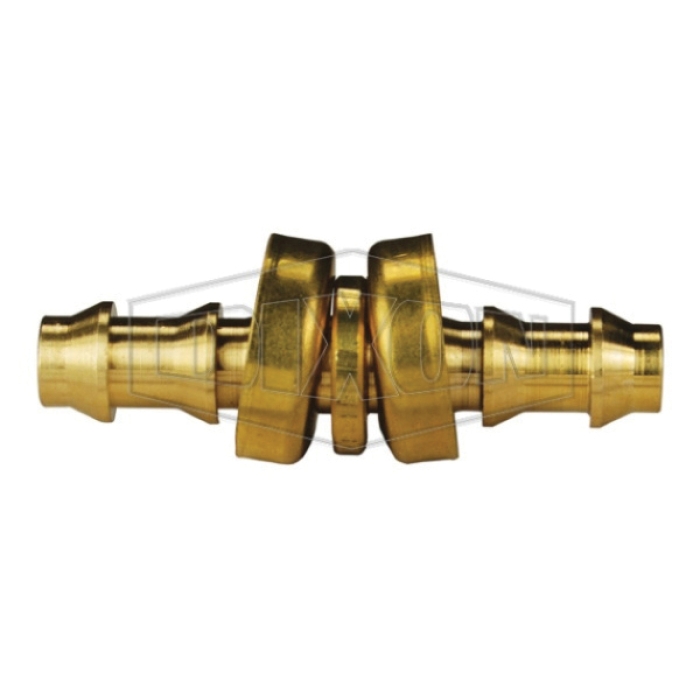

Dixon® 2960606CBC Brass Push-On Hose Mender with Brass Cap, 3/8 in Hose Barb

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 2960606CBC
  • MPN: 2960606CBC
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Push-On Hose Mender with Brass Cap, Connection Type 1: Hose Barb, Connection Size 1: 3/8 in, Connection Type 2: Hose Barb, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, 350 psi, Brass, Dimensions: 2.05 in L, -40 to 150 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Hose Mender
Connection Size 2      :      3/8 in
Nominal Size      :      3/8 in
Pressure Rating      :      350 psi
Material      :      Brass
Dimensions      :      2.05 in L
Temperature Rating      :      -40 to 150 deg F
Hose Connection      :      3/8 in in
Connection Type 1      :      Hose Barb
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in Hose Barb
Connection Type 2      :      Hose Barb
  • Brass cap

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

Instructions: Trim hose end with a smooth square cut.

  • Lubricate either push-on fitting, hose or both.
  • Insert push-on fitting into hose until first barb is in hose.
  • Place end of fitting against a flat object (bench, wall, etc.) and grip the hose 1 in from end.
  • Push with a steady force until end of hose is covered by yellow plastic cap.
  • Leaving push-on fitting in place, make a 1 in cut in the hose along the barbed end of the fitting.
  • Be careful not to nick barbs when cutting the hose.
  • With firm grip on hose, give a sharp downward pull to release the fitting from the hose.

    Safety Notes: Dixon® push-on fittings are intended for use with Lok-on (push-on style) hose only.

  • Caution: push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
    • pdfCatalog/Catalog Cut Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4540_CAT.pdf
    • pdfSDS https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2740404C_SDS.pdf
    • pdfSpecification Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2960606CBC_SS.pdf
