Dixon® DCP2542L

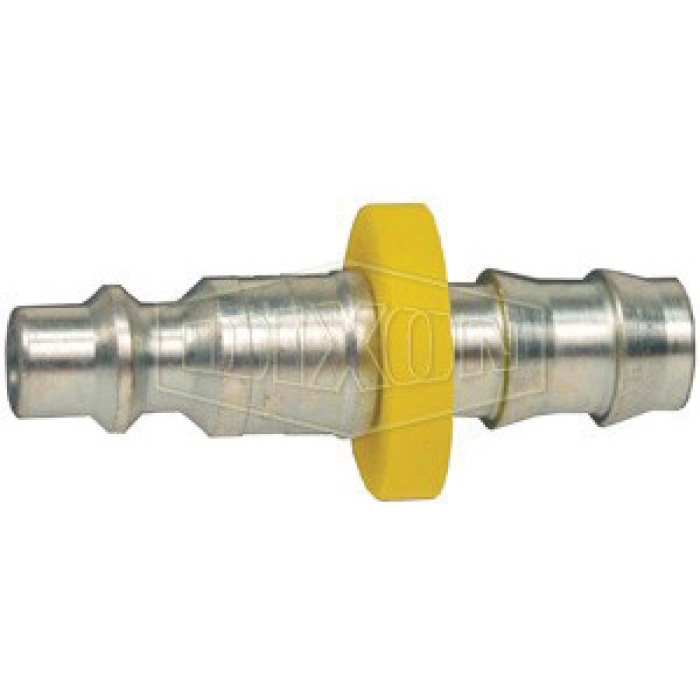

Dixon® DCP2542L Steel Air Chief Industrial Interchange Push-On Plug, 3/8 in Quick Disconnect x 1/4 in Hose Barb

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN DCP2542L
  • MPN: DCP2542L
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Air Chief Industrial Interchange Push-On Plug, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: Hose Barb, Connection Size 2: 1/4 in, 300 psi, Steel, Dimensions: 2-1/32 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Connection Size 2      :      1/4 in
Pressure Rating      :      300 psi
Material      :      Steel
Dimensions      :      2-1/32 in L
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/8 in
Connection 2      :      1/4 in Hose Barb
Connection Type 2      :      Hose Barb
  • Air chief industrial couplers are the popular industrial design and will interchange with many other makes

Safety Notes:

  • For air service only.
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.
