Aeroquip® 5400-S5-16
Send Print
  1. pin-int

Aeroquip® 5400-S5-16

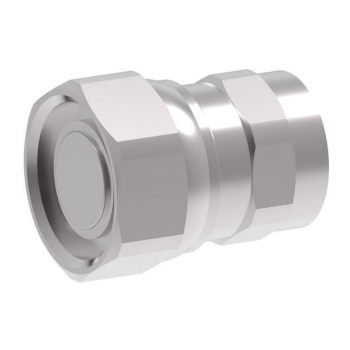

Aeroquip® 5400 Guardian Seal™ Carbon Steel Coupling, 1 in Female L.A.I.R. Quick Disconnect x Braze Tube

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 5400-S5-16
  • MPN: 5400-S5-16
  • UPC: 678146036346
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, 5400 Series, Connection Type 1: 5400 Low Air Inclusion Refrigerant Quick Disconnect, Gender 1: Female, Connection Size 1: 1 in, Connection Type 2: Tube, Connection Size 2: 1 in, Hex Size: 1.97 x 1.77 in, 300 psi, Carbon Steel, Finish: Guardian Seal™, Dimensions: 2.39 in L x 1.97 in W x 2.2 in H

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      1 in
Thread Size 2      :      1-3/4-16
Series      :      5400
Hex Size      :      1.97 x 1.77 in
Pressure Rating      :      300 psi
Material      :      Carbon Steel
Finish      :      Guardian Seal™
Dimensions      :      2.39 in L x 1.97 in W x 2.2 in H
Connection 1      :      1 in 5400 L.A.I.R. Quick Disconnect
Connection Type 1      :      5400 L.A.I.R. Thread
Gender 1      :      Female
Connection Size 1      :      1 in
Connection 2      :      1 in Tube
Connection Type 2      :      Tube

Danfoss's 5400 Series low air inclusion product line is designed for air conditioning, refrigerant, gaseous and fluid transfer applications.

  • Brazed or threaded end connections for versatility of installation on tubing or hose
  • Tubular valve construction for low fluid loss and air inclusion
  • Thread together design allows connection and disconnection against pressure
  • Neoprene seal
  • Guardian Seal™ plating for excellent corrosion resistance

Applications: For mobile air conditioning and refrigerant
