Dixon® STR35001

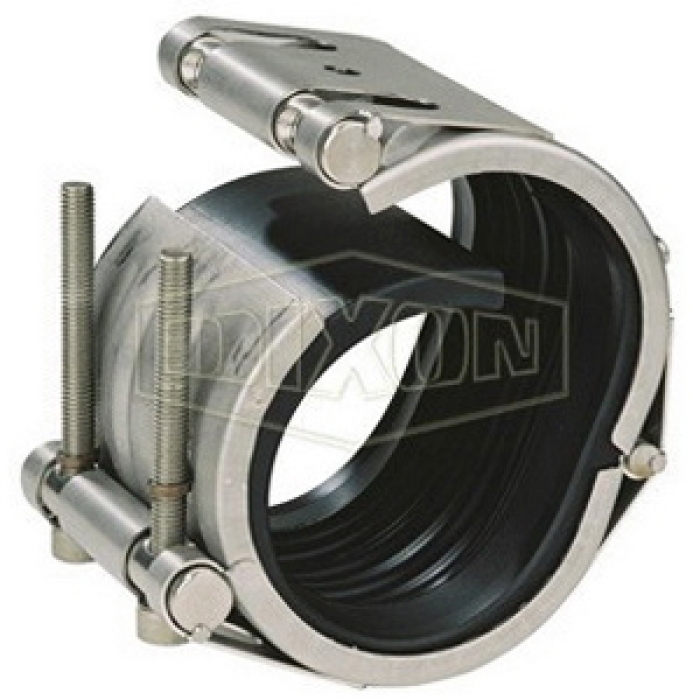

Dixon® STR35001 Stainless Steel Straub Open-Flex 1L Coupling, 1-1/2 in

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN STR35001
  • MPN: STR35001
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Straub Open-Flex 1L Coupling, Connection Size 1: 1-1/2 in, 363 psi, Stainless Steel, -4 to 176 deg F, For Use With: 1.85 - 1.95 in Steel, Galvanized, Painted, Stainless Steel, Thin Wall Stainless Steel, PVC, Copper Pipes

California residents see Prop 65 WARNINGS

  • Accommodates up to 5 deg of pipe misalignment
  • Vary gap between pipe ends
  • Absorbs vibration, water hammer and sound
  • Special patented grip ring for superior holding power on hard-surfaced pipes
  • Highest-quality 316 Ti stainless steel construction
  • EPDM sealing sleeve standard, temperature range of -4 to 176 deg F
  • Casing AISI 316 Ti
  • AISI 4135 steel screws

Applications: Suitable for repairing or joining pipes where access to the pipe end is difficult or not possible, the unique wrap-around design differs from similar type repair products because the installation or repair is permanent due to the unique flexible lip seal gasket design, open-flex couplings will also act as an expansion joint, straub open-flex couplings do require the pipes to be properly anchored and restrained as they are not pull-out- resistant like the straub grip-l couplings, use straub open-flex couplings to replace bolted sleeve type couplings (AWWA Stc. C-219) or for permanent repairs or installation

Instructions:

  • Requires no special tools or pipe end preparation, only a torque wrench is required for a secure and safe pipe connection that seldom needs retightening.

Safety Notes:

  • Not pull out resistant.
  • Ensure that pipes are properly anchored and supported.
