Midland Industries 64500

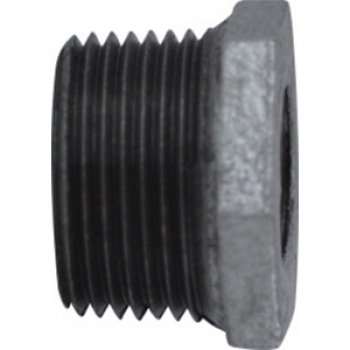

Midland Metals 64500 Galvanized Malleable Iron Inside Hex Bushing, 1/4 in MNPT x 1/8 in FNPT

  • Manufacturers: Midland Industries
  • Brand Name: Midland Industries
  • Tipco Part No: MID 64500
  • MPN: 64500
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Midland Metals Inside Hex Bushing, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/8 in, Hex Size: 0.67 in, 150 lb, Malleable Iron, Finish: Galvanized, Dimensions: 0.79 in L, Dimension Standards: ANSI B16.3, ANSI B2.1 or BS 21, ASME B1.20.1, -20 to 350 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Hex Bushing
Gender 2      :      Female
Connection Size 2      :      1/8 in
Hex Size      :      0.67 in
Pressure Rating      :      150 lb
Material      :      Malleable Iron
Finish      :      Galvanized
Dimensions      :      0.79 in L
Dimension Standards      :      ANSI B16.3, ANSI B2.1 or BS 21, ASME B1.20.1
Temperature Rating      :      -20 to 350 deg F
Connection 1      :      1/4 in NPT
Connection Type 1      :      NPT
Gender 1      :      Male
Connection Size 1      :      1/4 in
Connection 2      :      1/8 in NPT
Connection Type 2      :      NPT

Our quality fittings are made with care and attention to detail. With better molds we can reduce parting lines and rough edges resulting in better fluid flow. By using a low temperature galvanizing process the coating is more durable which means a longer lasting fitting. All Fittings are 100% pressure tested to 300 lb class.
