Midland Industries 65538DT MID 65538DT | Tipco Technologies
Midland Industries 65538DT
Send Print
  1. pin-int

Midland Industries 65538DT

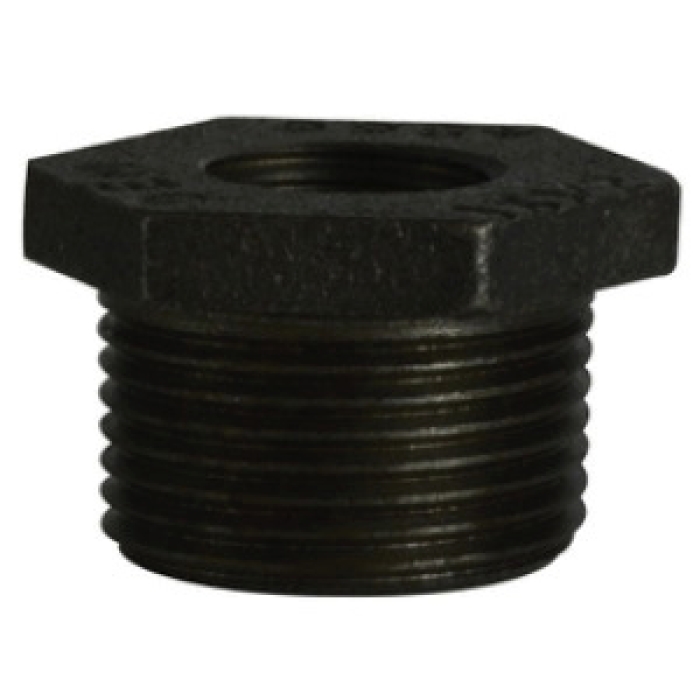

Midland Metals 65538DT Black Malleable Iron Double Tapped Bushing, 3 in MNPT x 2 in FNPT

  • Manufacturers: Midland Industries
  • Brand Name: Midland Industries
  • Tipco Part No: MID 65538DT
  • MPN: 65538DT
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Midland Metals Double Tapped Bushing, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 3 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 2 in, Hex Size: 3.86 in, 150 lb, Malleable Iron, Black, Dimensions: 1.61 in L, Dimension Standards: ANSI B16.3, ANSI B2.1 or BS 21, ASME B1.20.1, -20 to 350 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Bushing
Gender 2      :      Female
Connection Size 2      :      2 in
Hex Size      :      3.86 in
Pressure Rating      :      150 lb
Material      :      Malleable Iron
Color      :      Black
Dimensions      :      1.61 in L
Dimension Standards      :      ANSI B16.3, ANSI B2.1 or BS 21, ASME B1.20.1
Temperature Rating      :      -20 to 350 deg F
Connection 1      :      3 in NPT
Connection Type 1      :      NPT
Gender 1      :      Male
Connection Size 1      :      3 in
Connection 2      :      2 in NPT
Connection Type 2      :      NPT

Our quality fittings are made with care and attention to detail. With better molds we can reduce parting lines and rough edges resulting in better fluid flow. By using a low temperature galvanizing process the coating is more durable which means a longer lasting fitting. All Fittings are 100% pressure tested to 300 lb class.

Standards/Certifications: ASTM A 197

  • ASTM A164 LS
  • Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
  • RoHS Compliant
