Midland Industries 44162
Send Print
  1. pin-int

Midland Industries 44162

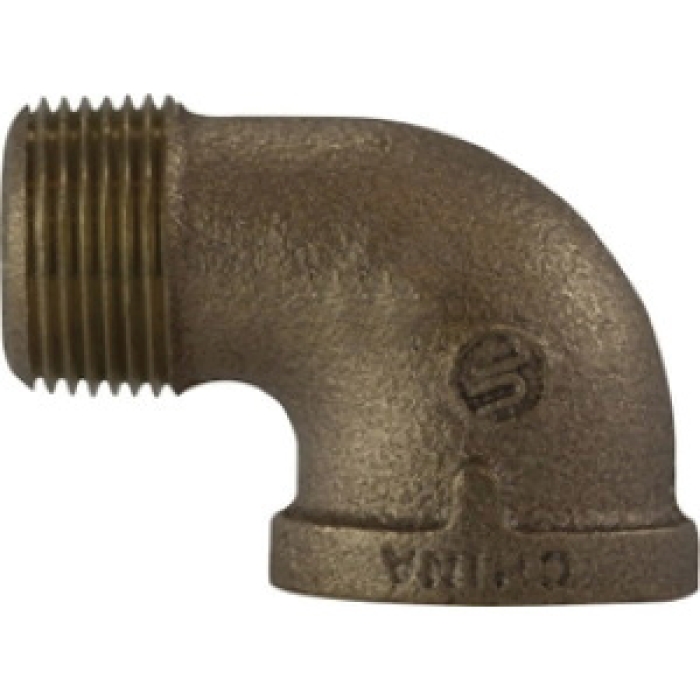

Midland Metals 44162 Bronze 90 deg Street Elbow, 3/8 in MNPTF x 3/8 in FNPTF

  • Manufacturers: Midland Industries
  • Brand Name: Midland Industries
  • Tipco Part No: MID 44162
  • MPN: 44162
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Midland Metals 90 deg Street Elbow, Connection Type 1: NPTF, Gender 1: Male, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/8 in, Bronze, Dimension Standards: ANSI B16.15, ANSI B2.1 or BA 21, ANSI/ASME B1.20.1, Federal Specification WW-P-460C, MSS-SP-106

Fitting Type      :      90 deg Elbow
Gender 2      :      Female
Connection Size 2      :      3/8 in
Material      :      Bronze
Dimension Standards      :      ANSI B16.15, ANSI B2.1 or BA 21, ANSI/ASME B1.20.1, Federal Specification WW-P-460C, MSS-SP-106
Connection 1      :      3/8 in NPT
Connection Type 1      :      NPTF
Gender 1      :      Male
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in NPT
Connection Type 2      :      NPTF

Bronze threaded fittings are manufactured from smooth-cored castings, designed to provide full flow with minimum restriction. All threads are accurately machined and gauged to ensure a perfect fit with the pipe. All fittings are individually tested under water to ensure quality. Bronze provides a tighter seal and is easier to install than other metals. Can be used for water, plumbing, heating, pneumatic and marine applications, able to resist the harmful effects of corrosion when coming into contact with salt water or fresh water polluted with mineral acids or peaty soils.

Standards/Certifications: ASTM B62-93 (85,5,5,5) C83600

  • FM Approved
  • RoHS Compliant
  • UL Listed

    Applications: Air service, gas, oil, steam and water
