Anchor Fluid Power W81-32-32
Send Print
  1. pin-int

Anchor Fluid Power W81-32-32

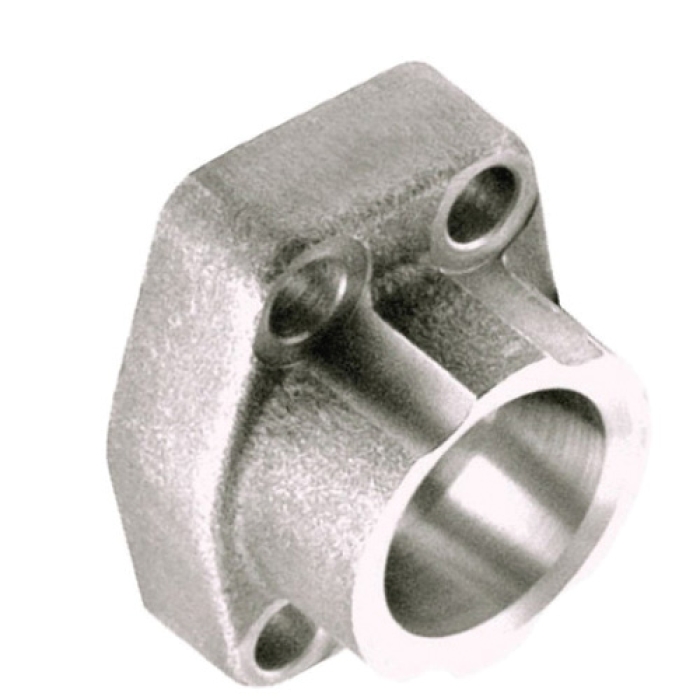

Anchor Fluid Power W81-32-32 Carbon Steel Flange, 2 in SAE Code 62 O-Ring Flange x 2 in Deep Socket Weld

  • Manufacturers: Anchor Fluid Power
  • Brand Name: Anchor Fluid Power
  • Tipco Part No: ANC W81-32-32
  • MPN: W81-32-32
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Anchor Fluid Power Flange, Connection Type 1: SAE Code 62 O-Ring Flange, Connection Size 1: 2 in, Connection Type 2: Deep Socket Weld, Connection Size 2: 2 in, 4-Bolt Hole, Carbon Steel, Dimensions: 4.5 in L x 2.56 in W x 5.28 in H

Fitting Type      :      Flange
Connection Size 2      :      2 in
Number of Bolt Holes      :      4
Material      :      Carbon Steel
Dimensions      :      4.5 in L x 2.56 in W x 5.28 in H
Connection 1      :      2 in Code 62
Connection Type 1      :      SAE Code 62 O-Ring Flange
Connection Size 1      :      2 in
Connection 2      :      2 in Weld
Connection Type 2      :      Deep Socket Weld
