Banjo® AF300
Send Print
  1. pin-int

Banjo® AF300

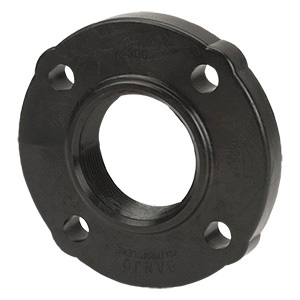

Banjo® AF300 Black Glass Reinforced Polypropylene Heavy-Duty ANSI Flange, 3 in FNPT

  • Manufacturers: Banjo Corporation
  • Brand Name: Banjo®
  • Tipco Part No: BAN AF300
  • MPN: AF300
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Banjo® Heavy-Duty ANSI Flange, Connection Type 1: NPT, Gender 1: Female, Connection Size 1: 3 in, 150 lb, 3/4 in Bolt Hole Diameter, 4-Bolt Hole, 15/16 in Thick Flange, Glass Reinforced Polypropylene, Black, SCH 80, Dimensions: 7-1/2 in OD, -20 to 150 deg F

Fitting Type      :      Flange
Pressure Rating      :      150 lb
Bolt Hole Diameter      :      3/4 in
Number of Bolt Holes      :      4
Flange Thickness      :      15/16 in
Material      :      Glass Reinforced Polypropylene
Color      :      Black
Schedule      :      SCH 80
Dimensions      :      7-1/2 in OD
Temperature Rating      :      -20 to 150 deg F
Connection 1      :      3 in NPT
Connection Type 1      :      NPT
Gender 1      :      Female
Connection Size 1      :      3 in
