Dixon® ANSI25
Send Print
  1. pin-int

Dixon® ANSI25

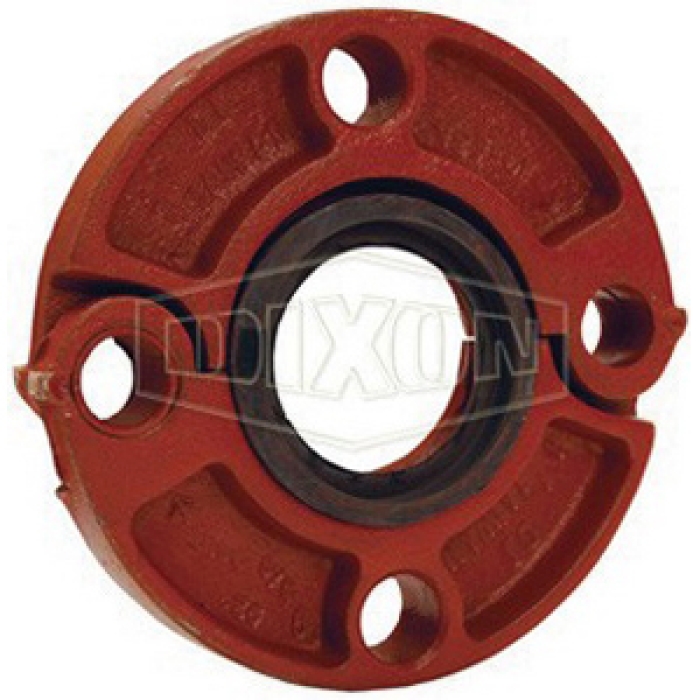

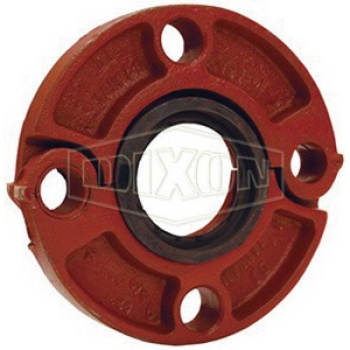

Dixon® SF Series Ductile Iron Split Flange, 2-1/2 in

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN ANSI25
  • MPN: ANSI25
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Split Flange, SF Series, Connection Size 1: 2-1/2 in, 300 psi, Ductile Iron, Dimensions: 2-7/8 in OD

California residents see Prop 65 WARNINGS

Fitting Type      :      Flange
Pressure Rating      :      300 psi
Material      :      Ductile Iron
Series      :      SF
Dimensions      :      2-7/8 in OD
Connection 1      :      2-1/2 in
Connection Size 1      :      2-1/2 in
  • Comparable to Victaulic's #741 and Grinnell's #7012
  • Rust inhibiting paint
  • EPDM gasket
  • Can be used with flat face flanges by removing the raised projections on the outside face of the flange

Applications: Provides a direct connection between a grooved adapter and an ANSI class 125 and 150 raised face flanged component
