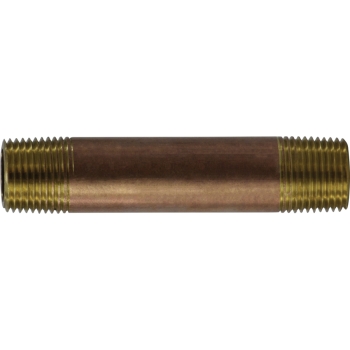

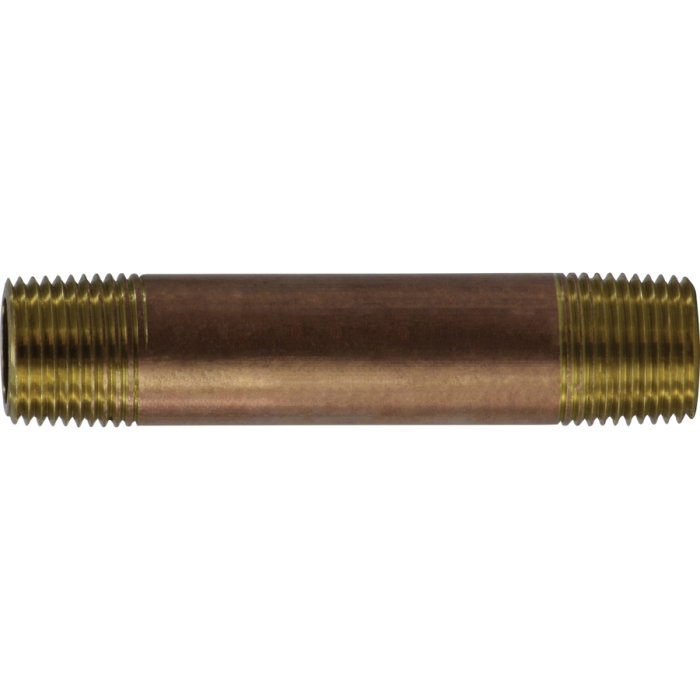

Midland Metals Seamless Nipple, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 3/8 in, Thread Size 1: 3/8-18, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, SCH 40, 0.09 in Thick Wall, 890 psi at 100 deg F, Brass, Finish: Red, 0.675 in Diameter, 4 in Length, Dimension Standards: ANSI B1.20.1, MS 51846, WW-N-351
| Fitting Type | : | Nipple |
| Gender 2 | : | Male |
| Connection Size 2 | : | 3/8 in |
| Thread Size 2 | : | 3/8-18 |
| Schedule | : | SCH 40 |
| Wall Thickness | : | 0.09 in |
| Pressure Rating | : | 890 psi at 100 deg F |
| Material | : | Brass |
| Finish | : | Red |
| Diameter | : | 0.675 in |
| Length | : | 4 in |
| Dimension Standards | : | ANSI B1.20.1, MS 51846, WW-N-351 |
| Connection 1 | : | 3/8 in NPT |
| Connection Type 1 | : | NPT |
| Gender 1 | : | Male |
| Connection Size 1 | : | 3/8 in |
| Thread Size 1 | : | 3/8-18 |
| Connection 2 | : | 3/8 in NPT |
| Connection Type 2 | : | NPT |
We hereby certify that to the best of our knowledge and belief the CDA 230 alloy seamless red brass pipe from which our nipples are produced meet the requirements of ASTM specifications B43 and is free of mercury contamination. The chemical analysis is 85% copper, 15% zinc and conforms to Federal specifications WWN-351.
- Nipples are threaded with American Standard taper pipe threads (NPT) in accordance with screw-thread standard for Federal Services Handbook H-58. ANSI B1.20.1
- This product is certified by NSF to NSF/ANSI 61 for use in drinking water supplies of pH 6.5 and above
- Lead-free
Standards/Certifications: ASTM B43
Applications: For use in drinking water supplies of pH 6.5 and above
Catalog/Catalog Cut Sheet
