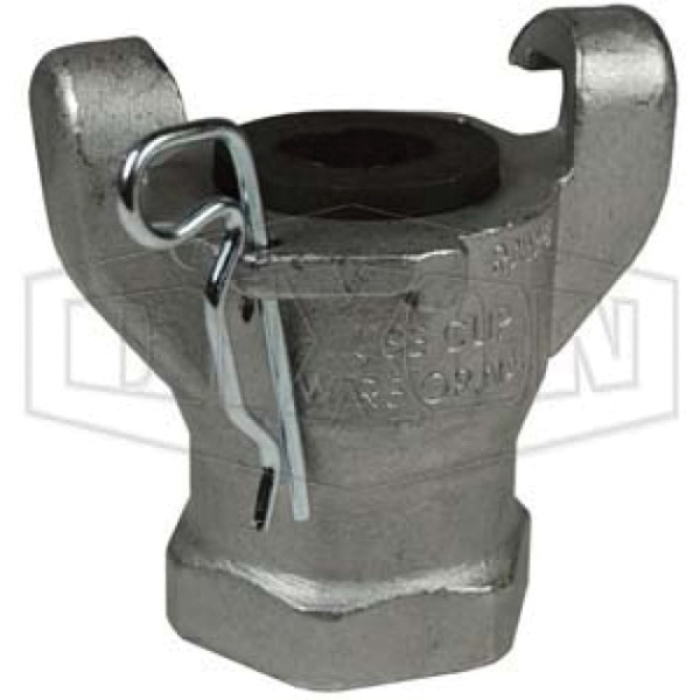

Dixon® Air King™ 2-Lug Hose End, Connection Type 1: NPT, Gender 1: Female, Connection Size 1: 1 in, Hex Size: 1-5/8 in, 150 psi, 316 Stainless Steel, Dimensions: 2-1/16 in L x 2-1/2 in W, 70 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Hose End |
| Hex Size | : | 1-5/8 in |
| Pressure Rating | : | 150 psi |
| Material | : | 316 Stainless Steel |
| Dimensions | : | 2-1/16 in L x 2-1/2 in W |
| Temperature Rating | : | 70 deg F |
| Connection 1 | : | 1 in NPT |
| Connection Type 1 | : | NPT |
| Gender 1 | : | Female |
| Connection Size 1 | : | 1 in |
- Includes safety clip
- Supplied with rubber washer AWR4
- Rubber seal
- Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
- Only one Air King™ safety clip or wire-type retainer is required for each Air King™ universal coupling
- Air King™ meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633D
Standards/Certifications: Mil-A-A-59326D Specified
Applications: For air and water service only
