Dixon® DLB12

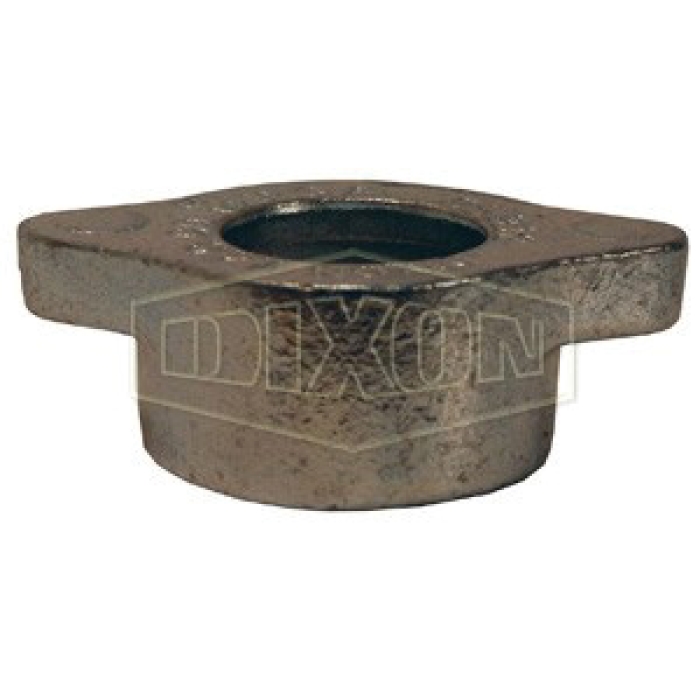

Dixon® DLB12 Iron Heavy-Duty Ground Joint Wing Nut, 3/4 in and 1 in

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN DLB12
  • MPN: DLB12
  • UPC: 697464452195
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Heavy-Duty Ground Joint Wing Nut, Connection Size 1: 3/4 x 1 in, Thread Size 1: 1-3/4-8 UN, Iron, Dimensions: 1-47/64 in OD x 3-5/8 in L x 1-1/4 in H, For Use With: GBB18, GBB11, GDF10, GDF12, GDL25, GDL7, GDL10, GDL8 and GDL13 Air Hammers

California residents see Prop 65 WARNINGS

Fitting Type      :      Ground Joint Wing Nut
Material      :      Iron
Dimensions      :      1-47/64 in OD x 3-5/8 in L x 1-1/4 in H
For Use With      :      GBB18, GBB11, GDF10, GDF12, GDL25, GDL7, GDL10, GDL8 and GDL13 Air Hammers
Connection 1      :      3/4 x 1 in
Connection Size 1      :      3/4 x 1 in
Thread Size 1      :      1-3/4-8 UN

Safety Notes:

  • Worn-out hose couplings can be dangerous.
  • They should be checked regularly and replace when necessary.
  • Each coupling user should review applications and add safety devices where indicated.
