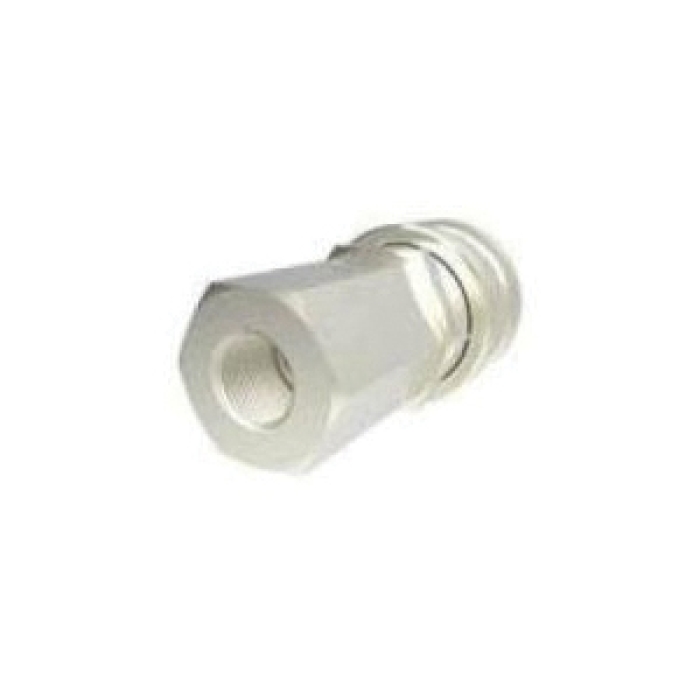

Aeroquip® by Danfoss LL1000
Aeroquip® by Danfoss Hansen 1000 Series LL1000 Coupling, 1/4 in x 1/4 in, Quick Connect x NPTF, Stainless Steel
- Manufacturers: Danfoss
- Brand Name: Aeroquip® by Danfoss
- Tipco Part No: ALT LL1000
- MPN: LL1000
- UPC: 678146165831
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Eaton 1000 Series industrial interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases and liquids.
Aeroquip® by Danfoss Hansen Coupling, Female Gender 2, Connection Size 2: 1/4, 1/4-18 Thread Size 2, 0.69 Hex, 2000, Stainless Steel, Dimensions: 2.08 in L x 1 in W x 1 in H, Dimension Standards: ISO 6150B, 1000 Series, -40 to 250 Temperature Rating, 1/4 in Female Quick Connect Connection 1, Connection Type 1: Quick Connect, Female Gender 1, Connection Size 1: 1/4, 1/4-18 Thread Size 1, 1/4 in Female NPTF Connection 2, Connection Type 2: NPTF
| Fitting Type | : | Coupling |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/4 in |
| Thread Size 2 | : | 1/4-18 |
| Hex Size | : | 0.69 in |
| Pressure Rating | : | 2000 psi |
| Material | : | Stainless Steel |
| Dimensions | : | 2.08 in L x 1 in W x 1 in H |
| Dimension Standards | : | ISO 6150B |
| Series | : | 1000 Series |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1/4 in Female Quick Connect |
| Connection Type 1 | : | Quick Connect |
| Gender 1 | : | Female |
| Connection Size 1 | : | 1/4 in |
| Thread Size 1 | : | 1/4-18 |
| Connection 2 | : | 1/4 in Female NPTF |
| Connection Type 2 | : | NPTF |
- Ball lock design
- Manual operation
- Rugged, reliable
- Ball latching mechanism
- All sizes accept US industrial interchange
- Nickel-plated steel sleeve
- Buna-N seal material
