Aeroquip® 100E
Send Print
  1. pin-int

Aeroquip® 100E

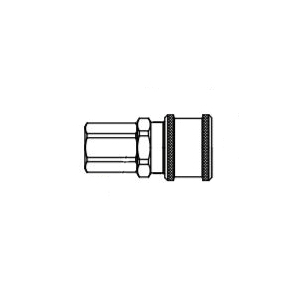

Aeroquip® 100 Brass Coupling, 1/4 in Female Quick Disconnect x 1/8 in FNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 100
  • MPN: 100E
  • UPC: 678146196132
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, 100 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/8 in, Thread Size 2: 1/8-27, Hex Size: 0.69 in, 2800 psi, Brass, Dimensions: 1.75 in L x 1.03 in W x 1.03 in H, -40 to 250 deg F

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      1/8 in
Thread Size 2      :      1/8-27
Hex Size      :      0.69 in
Pressure Rating      :      2800 psi
Material      :      Brass
Dimensions      :      1.75 in L x 1.03 in W x 1.03 in H
Series      :      100
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      1/4 in
Connection 2      :      1/8 in NPT
Connection Type 2      :      NPTF

Danfoss’s 100 Series quick disconnect couplings are designed to prevent the crossing of lines. These couplings are used for compressed air and gases.

  • Non-interchangeable design prevents crossing of lines
  • Buna-N seal material

Applications: General pneumatics, industrial plants
