Aeroquip® LL1000

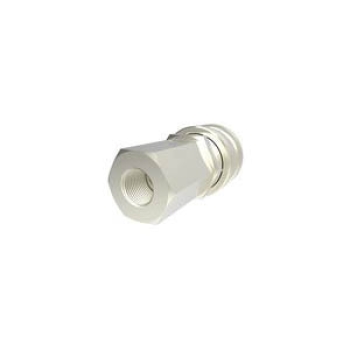

Aeroquip® 1000 Stainless Steel Coupling, 1/4 in Female Quick Disconnect x 1/4 in FNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN LL1000
  • MPN: LL1000
  • UPC: 678146165831
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, 1000 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 0.69 in, 2000 psi, Stainless Steel, Dimensions: 2.08 in L x 1 in W x 1 in H, Dimension Standards: ISO 6150 Series B, -40 to 250 deg F

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      1/4 in
Thread Size 2      :      1/4-18
Hex Size      :      0.69 in
Pressure Rating      :      2000 psi
Material      :      Stainless Steel
Dimensions      :      2.08 in L x 1 in W x 1 in H
Dimension Standards      :      ISO 6150 Series B
Series      :      1000
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPTF

Danfoss 1000 Series industrial interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases and liquids.

  • Ball lock design
  • Manual operation
  • Rugged, reliable
  • Ball latching mechanism
  • All sizes accept US industrial interchange
  • Nickel-plated steel sleeve
  • Buna-N seal material

Applications: General pneumatics, construction, industrial plants, fluid transfer
