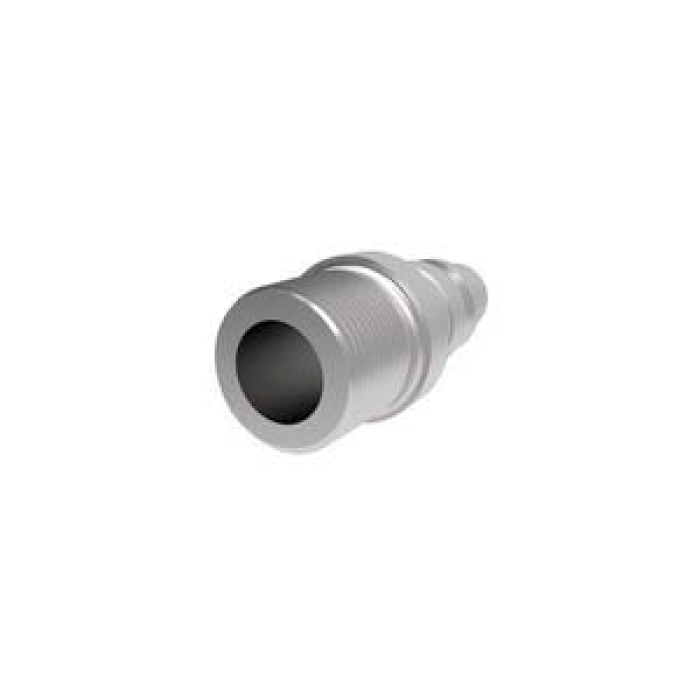

Aeroquip® Coupling, 1000 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 0.69 in, 2000 psi, Stainless Steel, Dimensions: 2.16 in L x 1 in W x 1 in H, Dimension Standards: ISO 6150 Series B, -40 to 250 deg F
| Fitting Type | : | Coupling |
| Gender 2 | : | Male |
| Connection Size 2 | : | 1/4 in |
| Thread Size 2 | : | 1/4-18 |
| Hex Size | : | 0.69 in |
| Pressure Rating | : | 2000 psi |
| Material | : | Stainless Steel |
| Dimensions | : | 2.16 in L x 1 in W x 1 in H |
| Dimension Standards | : | ISO 6150 Series B |
| Series | : | 1000 |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Female |
| Connection Size 1 | : | 1/4 in |
| Connection 2 | : | 1/4 in NPT |
| Connection Type 2 | : | NPTF |
Danfoss 1000 Series industrial interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases and liquids.
- Ball lock design
- Manual operation
- Non-interchangeable design prevents crossing of lines
- Sleeves are color coded to identify each Series - Series 600 sleeves are green for oxygen, Series 700 sleeves are red for acetylene
- Series 600 and 700 couplings can also be used with compressed air and other gases
- Sockets with SL suffix have the sleeve lock feature to prevent accidental disconnection
- Series 600 and 700 couplings with sleeve lock feature comply with OSHA requirements, which state couplings shall be the type that cannot be unlocked or disconnected by means of a straight pull without rotary motion
- Ball latching mechanism
- All sizes accept US industrial interchange
- Buna-N seal material
Applications: General pneumatics, construction, industrial plants
