Aeroquip® 28S25M
Send Print
  1. pin-int

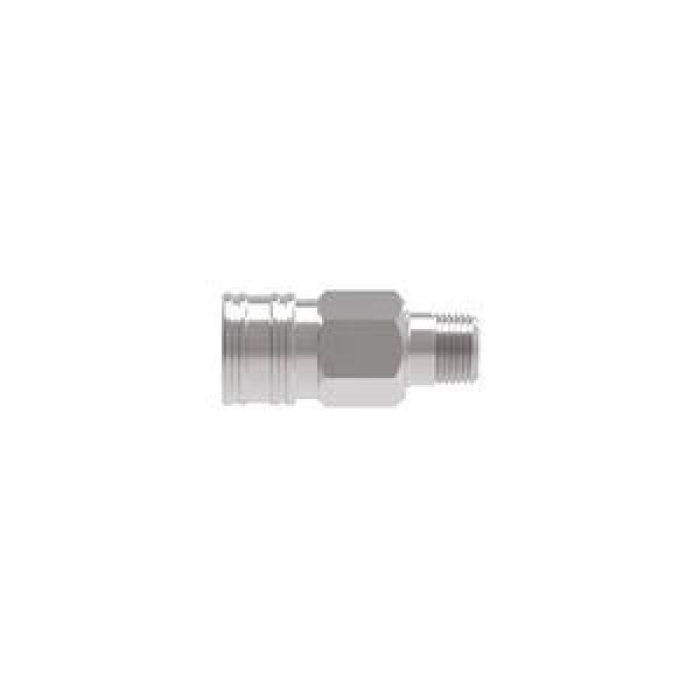

Aeroquip® 28S25M

Aeroquip® 180 Brass Coupling, 1/8 in Female Quick Disconnect x 1/4 in MNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 28S25M
  • MPN: 28S25M
  • UPC: 678146197818
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, 180 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/8 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 0.56 in, 3000 psi, Brass, Dimensions: 1.39 in L, -40 to 250 deg F, For Use With: Compressed Air, Gas, and Liquid

Fitting Type      :      Coupling
Gender 2      :      Male
Connection Size 2      :      1/4 in
Thread Size 2      :      1/4-18
Hex Size      :      0.56 in
Pressure Rating      :      3000 psi
Material      :      Brass
Dimensions      :      1.39 in L
Series      :      180
Temperature Rating      :      -40 to 250 deg F
For Use With      :      Compressed Air, Gas, and Liquid
Connection 1      :      1/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      1/8 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPTF

Danfoss's 180 Series miniature ball lock quick disconnect couplings are designed for use with compressed air, gases and liquids.

  • Series 180 sockets/females have a tire valve
  • Buna-N seal material
  • Interchange is proprietary to Danfoss

Applications: Recreation and entertainment, breathing air, general pneumatics, pharmaceutical, laboratory uses, medical
