Aeroquip® 2R18B3
Send Print
  1. pin-int

Aeroquip® 2R18B3

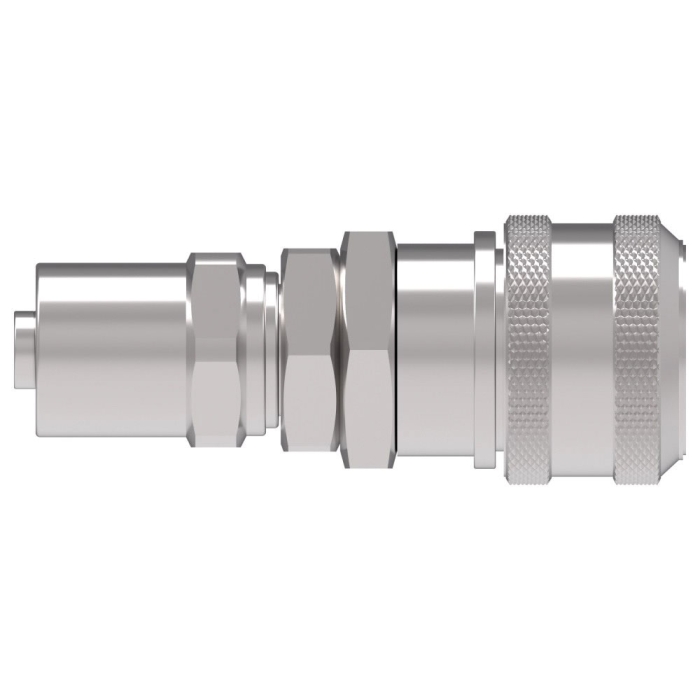

Aeroquip® 2RL Zinc Trivalent-Plated Carbon Steel Coupling, 1/4 in Female Quick Disconnect x 1/4 in ID and 1/2 in OD Hose

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 2R18B3
  • MPN: 2R18B3
  • UPC: 678146165015
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, 2RL Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: Hose, Connection Size 2: 1/4 in ID x 1/2 in OD, Hex Size: 0.63 in, 300 psi, Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 2.73 in L x 1.06 in W x 1.06 in H, -40 to 250 deg F

Fitting Type      :      Coupling
Connection Size 2      :      1/4 in ID x 1/2 in OD
Hex Size      :      0.63 in
Pressure Rating      :      300 psi
Material      :      Carbon Steel
Finish      :      Zinc Trivalent-Plated
Dimensions      :      2.73 in L x 1.06 in W x 1.06 in H
Series      :      2RL
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in ID x 1/2 in OD Hose
Connection Type 2      :      Hose

Danfoss's 2RL ring lock Series quick disconnect pneumatic couplings have a unique interchange which Danfoss designed for use with compressed air.

  • High flow capacity
  • Push to connect with a ring lock sleeve
  • Ring lock design prevents accidental disconnection
  • To disconnect rotate sleeve 20 deg
  • Buna-N seal material

Applications: Shipyards, general pneumatics, mining, marine
