Aeroquip® 3000SL
Send Print
  1. pin-int

Aeroquip® 3000SL

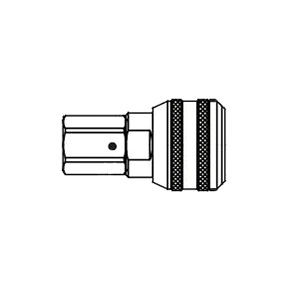

Aeroquip® 3000 Brass Coupling with Sleeve Lock, 1/4 in Female Quick Disconnect x 1/4 in FNPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 3000SL
  • MPN: 3000SL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling with Sleeve Lock, 3000 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, 2000 psi, Brass, Dimensions: 2-25/32 in L, Dimension Standards: ISO 6150 Series B, 70 deg F, For Use With: 3000 Series Plugs

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      1/4 in
Thread Size 2      :      1/4-18
Pressure Rating      :      2000 psi
Material      :      Brass
Dimensions      :      2-25/32 in L
Dimension Standards      :      ISO 6150 Series B
Series      :      3000
Temperature Rating      :      70 deg F
For Use With      :      3000 Series Plugs
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPT

Danfoss 3000 Series industrial interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases and liquids. This series sets the industry standard for pin lock style pneumatic couplings.

  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line
  • Sleeve lock option to protect against accidental disconnection
  • Buna-N seal material

Applications: Fluid transfer, general pneumatics, industrial breathing air, maintenance and repair
