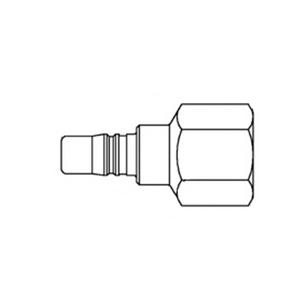

Aeroquip® Coupling Plug, 3RL Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 25.4 mm, 300 psi, Case-Hardened Steel, Finish: Zinc-Plated, Dimensions: 1.65 in L x 0.65 in W, -40 to 250 deg F
| Fitting Type | : | Plug |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/2 in |
| Thread Size 2 | : | 1/2-14 |
| Hex Size | : | 25.4 mm |
| Pressure Rating | : | 300 psi |
| Material | : | Case-Hardened Steel |
| Finish | : | Zinc-Plated |
| Dimensions | : | 1.65 in L x 0.65 in W |
| Series | : | 3RL |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 3/8 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Male |
| Connection Size 1 | : | 3/8 in |
| Connection 2 | : | 1/2 in NPT |
| Connection Type 2 | : | NPTF |
Danfoss's 3RL ring lock Series quick disconnect pneumatic couplings have a unique interchange which Danfoss designed for use with compressed air.
- Auto-Flo 23 was the first automatic universal coupling designed to operate with industrial, ARO 210 and tru-flate interchange plugs
- Auto-Flo 24 operates with CEJIN 320 and Rectus 25 interchange plugs
- Sleeve guard protects against accidental disconnection
- Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket end of line
- High flow capacity
- Push to connect with a ring lock sleeve
- Ring lock design prevents accidental disconnection
- To disconnect rotate sleeve 20 deg
- Buna-N seal material
Applications: Air tools, construction, general pneumatics
