Aeroquip® 3R27

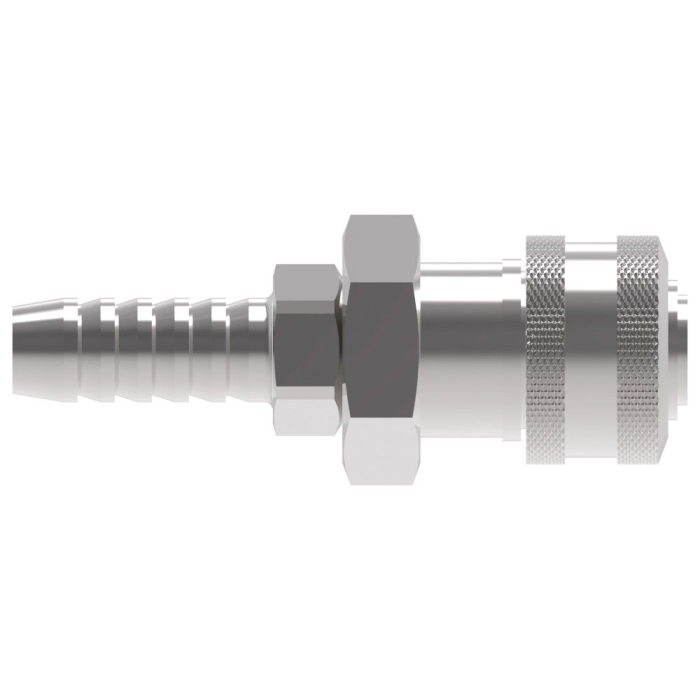

Aeroquip® 3RL Zinc Trivalent-Plated Carbon Steel Coupling, 3/8 in Female Quick Disconnect x 1/2 in Hose

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 3R27
  • MPN: 3R27
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, 3RL Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 3/8 in, Connection Type 2: Hose, Connection Size 2: 1/2 in, 300 psi, Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 2.81 in L x 1.31 in W, -40 to 250 deg F

Fitting Type      :      Coupling
Connection Size 2      :      1/2 in
Pressure Rating      :      300 psi
Material      :      Carbon Steel
Finish      :      Zinc Trivalent-Plated
Dimensions      :      2.81 in L x 1.31 in W
Series      :      3RL
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      3/8 in
Connection 2      :      1/2 in Hose
Connection Type 2      :      Hose

Danfoss's 3RL ring lock Series quick disconnect pneumatic couplings have a unique interchange which Danfoss designed for use with compressed air.

  • High flow capacity
  • Push to connect with a ring lock sleeve
  • Ring lock design prevents accidental disconnection
  • To disconnect rotate sleeve 20 deg
  • Buna-N seal material

Applications: Shipyards, general pneumatics, mining, marine
