Aeroquip® 4008E

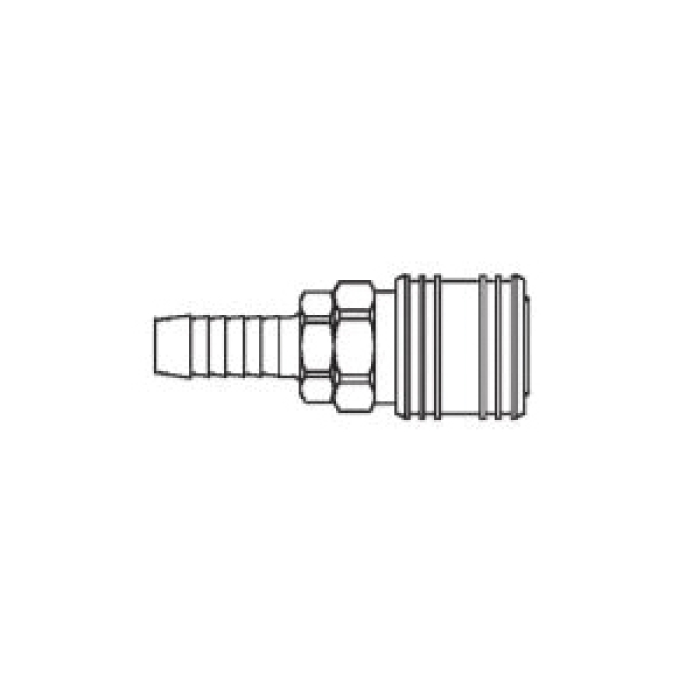

Aeroquip® 400 Nickel-Plated Brass Coupling, 3/8 in Female Quick Disconnect x 1/2 in Male Hose Barb

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 4008
  • MPN: 4008E
  • UPC: 678146102072
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, 400 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 3/8 in, Connection Type 2: Hose Barb, Gender 2: Male, Connection Size 2: 1/2 in, 1000 psi, Brass, Finish: Nickel-Plated, Dimensions: 2.82 in L x 1.13 in W x 1.13 in H, Dimension Standards: ISO 6150 Series B, -40 to 250 deg F, For Use With: Compressed Air, Gas, and Liquid

Fitting Type      :      Coupling
Gender 2      :      Male
Connection Size 2      :      1/2 in
Pressure Rating      :      1000 psi
Material      :      Brass
Finish      :      Nickel-Plated
Dimensions      :      2.82 in L x 1.13 in W x 1.13 in H
Dimension Standards      :      ISO 6150 Series B
Series      :      400
Temperature Rating      :      -40 to 250 deg F
For Use With      :      Compressed Air, Gas, and Liquid
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      3/8 in
Connection 2      :      1/2 in Hose Barb
Connection Type 2      :      Hose Barb

Danfoss's 400 Series is an industrial interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases and liquids.

  • Ball latching mechanism
  • Brass body with nickel-plated steel sleeve
  • All sizes accept US industrial interchange
  • Accepts Tru-Flate interchange
  • Buna-N seal material

Applications: Construction, fluid transfer, general pneumatics, industrial plants
