Aeroquip® 54E

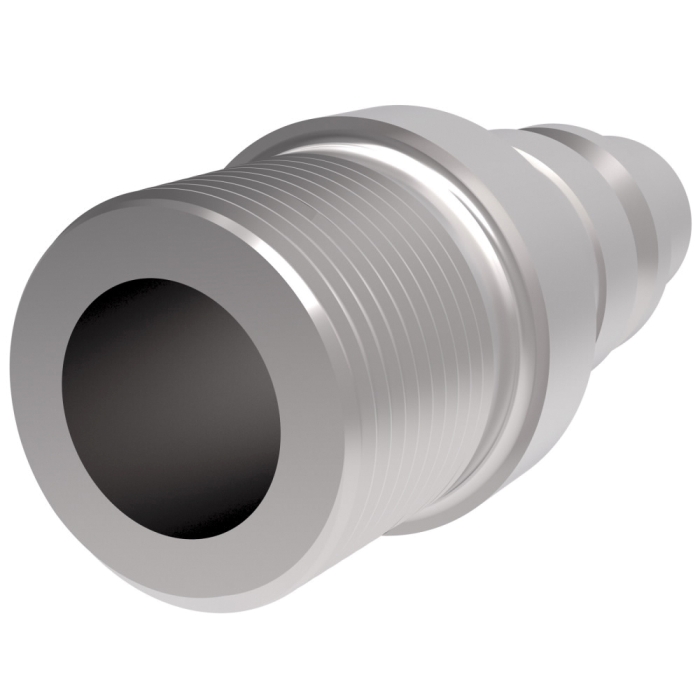

Aeroquip® 500 Carbon Steel Coupling, 1/2 in Male Quick Disconnect x 1/2 in MNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 54
  • MPN: 54E
  • UPC: 639789348180
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, 500 Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 0.88 in, 500 psi, Carbon Steel, Dimensions: 2.44 in L x 1.01 in W x 1.01 in H, Dimension Standards: ISO 6150 Series B, -40 to 250 deg F, For Use With: Compressed Air, Gas, and Liquid

Fitting Type      :      Coupling
Gender 2      :      Male
Connection Size 2      :      1/2 in
Thread Size 2      :      1/2-14
Hex Size      :      0.88 in
Pressure Rating      :      500 psi
Material      :      Carbon Steel
Dimensions      :      2.44 in L x 1.01 in W x 1.01 in H
Dimension Standards      :      ISO 6150 Series B
Series      :      500
Temperature Rating      :      -40 to 250 deg F
For Use With      :      Compressed Air, Gas, and Liquid
Connection 1      :      1/2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Male
Connection Size 1      :      1/2 in
Connection 2      :      1/2 in NPT
Connection Type 2      :      NPTF

Danfoss's 500 Series is an Industrial Interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases and liquids.

  • Ball latching mechanism
  • All sizes accept US industrial interchange
  • Buna-N seal material

Applications: Construction, general pneumatics, industrial plants
