Aeroquip® 520
Send Print
  1. pin-int

Aeroquip® 520

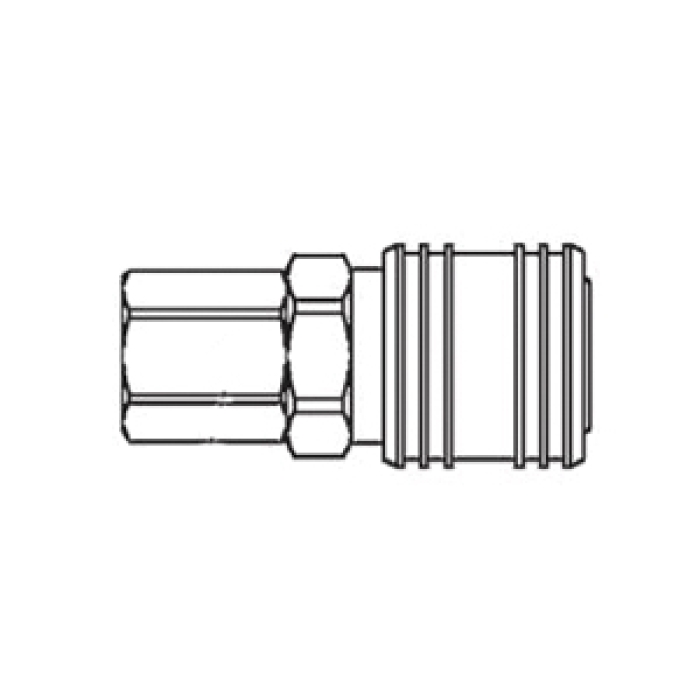

Aeroquip® 500 Nickel-Plated Brass Industrial Interchange Coupling, 1/2 in Female Quick Disconnect x 1/2 in FNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 520
  • MPN: 520
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Industrial Interchange Coupling, 500 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1 in, 500 psi, Brass, Finish: Nickel-Plated, Dimensions: 12.2 in L x 6.4 in W x 6.9 in H, -40 to 250 deg F

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      1/2 in
Thread Size 2      :      1/2-14
Hex Size      :      1 in
Pressure Rating      :      500 psi
Material      :      Brass
Finish      :      Nickel-Plated
Dimensions      :      12.2 in L x 6.4 in W x 6.9 in H
Series      :      500
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      1/2 in
Connection 2      :      1/2 in NPT
Connection Type 2      :      NPTF

Danfoss’s 500 Series is an industrial interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases and liquids.

  • Ball latching mechanism
  • Standard seal material Buna-N

Applications: Construction, food and beverage, general pneumatics, industrial plants, machine building, oil and gas, residential
