Aeroquip® 61E
Send Print
  1. pin-int

Aeroquip® 61E

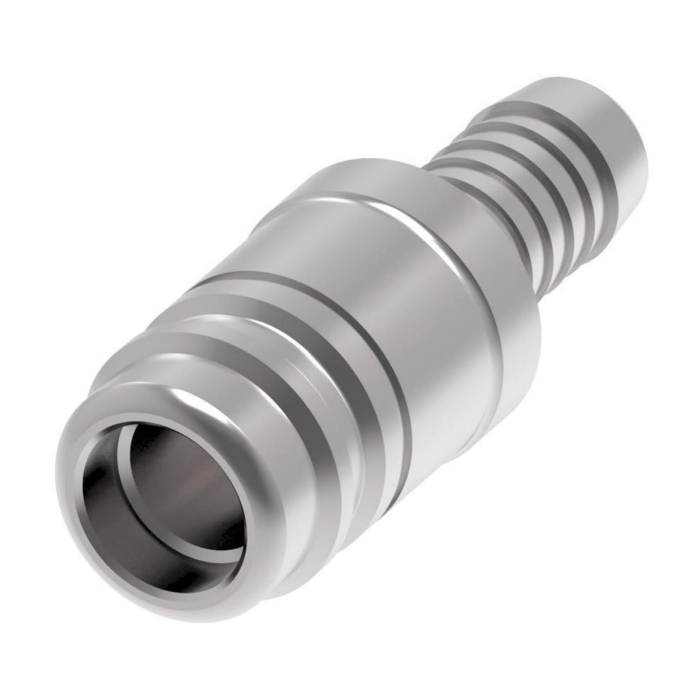

Aeroquip® 500 Steel Coupling Plug, 1/2 in Male Quick Disconnect x 3/4 in Hose Barb

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 61
  • MPN: 61E
  • UPC: 678146104090
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling Plug, 500 Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/2 in, Connection Type 2: Hose Barb, Connection Size 2: 3/4 in, 500 psi, Steel, Dimensions: 3-1/2 in L x 1 in W x 1 in H, Dimension Standards: ISO 6150 Series B, -40 to 250 deg F

Fitting Type      :      Plug
Connection Size 2      :      3/4 in
Pressure Rating      :      500 psi
Material      :      Steel
Dimensions      :      3-1/2 in L x 1 in W x 1 in H
Dimension Standards      :      ISO 6150 Series B
Series      :      500
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Male
Connection Size 1      :      1/2 in
Connection 2      :      3/4 in Hose Barb
Connection Type 2      :      Hose Barb

Danfoss's 500 Series is an industrial interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases and liquids.

  • Ball latching mechanism
  • Brass body with nickel-plated steel sleeve
  • All sizes accept US industrial interchange
  • Buna-N seal material

Applications: For general pneumatics, construction, industrial plants, fluid transfer
