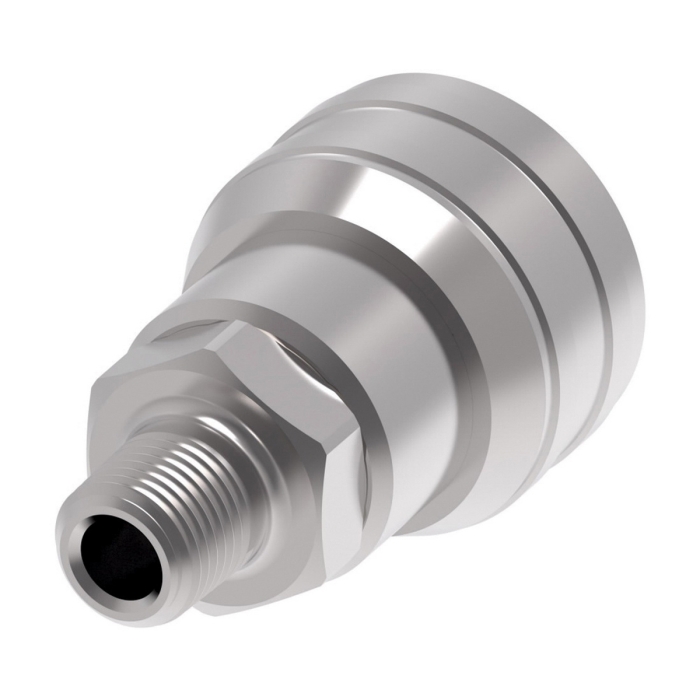

Aeroquip® Coupling, 5000 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1 in, Brass, Dimensions: 2.98 in L x 1.5 in W x 1.5 in H, Dimension Standards: ISO 6150 Series B, -40 to 250 deg F
| Fitting Type | : | Coupling |
| Gender 2 | : | Male |
| Connection Size 2 | : | 1/2 in |
| Thread Size 2 | : | 1/2-14 |
| Hex Size | : | 1 in |
| Material | : | Brass |
| Dimensions | : | 2.98 in L x 1.5 in W x 1.5 in H |
| Dimension Standards | : | ISO 6150 Series B |
| Series | : | 5000 |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1/2 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Female |
| Connection Size 1 | : | 1/2 in |
| Connection 2 | : | 1/2 in NPT |
| Connection Type 2 | : | NPTF |
Danfoss's 5000 Series industrial interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids. This series sets the industry standard for pin lock style pneumatic couplings.
- Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line
- Ball latching mechanism
- All sizes accept US industrial Interchange 1/4 and 1/2 in also accept ISO 6150 Series B and A-A-59439 plugs/males
- Nitrile standard seal material
Applications: Fluid transfer, general pneumatics, industrial breathing air, maintenance and repair
