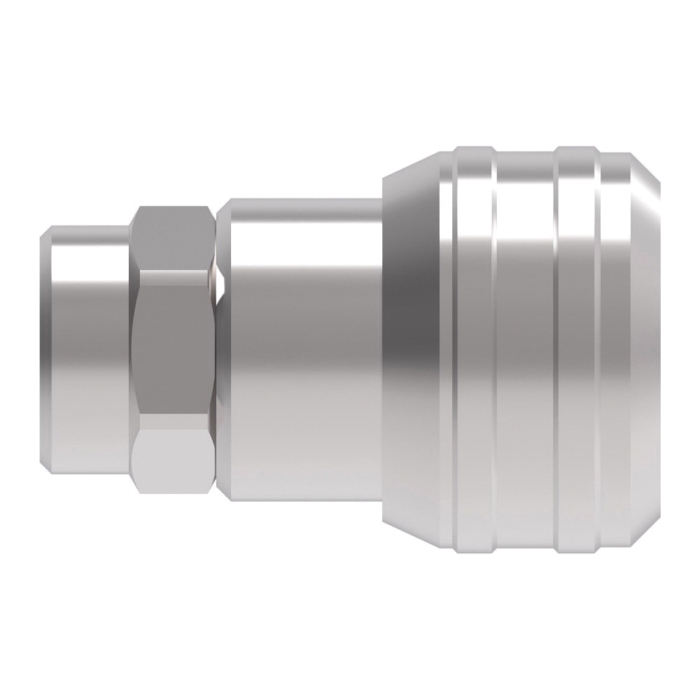

Aeroquip® Coupling with Sleeve Lock, 5000 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1.9 in, 500 psi, Brass, Dimensions: 1.50 in Dia x 3.10 in L, Dimension Standards: ISO 6150 Series B, A-A-59439 (former MIL-C-4109)
| Fitting Type | : | Coupling |
| Connection Size 2 | : | 3/4 in |
| Thread Size 2 | : | 3/4-14 |
| Hex Size | : | 1.9 in |
| Pressure Rating | : | 500 psi |
| Material | : | Brass |
| Dimensions | : | 1.50 in Dia x 3.10 in L |
| Dimension Standards | : | ISO 6150 Series B, A-A-59439 (former MIL-C-4109) |
| Series | : | 5000 |
| Connection 1 | : | 1/2 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Female |
| Connection Size 1 | : | 1/2 in |
| Connection 2 | : | 3/4 in NPT |
| Connection Type 2 | : | NPTF |
Danfoss's 5000 Series industrial interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids. This series sets the industry standard for pin lock style pneumatic couplings.
- Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line
- Ball latching mechanism
- Brass with nickel-plated steel sleeve standard body material
- Nitrile standard seal material
Applications: Industrial breathing air, general pneumatics, maintenance and repair, fluid transfer, food and beverage, machine building, oil and gas, residential
