Aeroquip® 5200BVSL143
Send Print
  1. pin-int

Aeroquip® 5200BVSL143

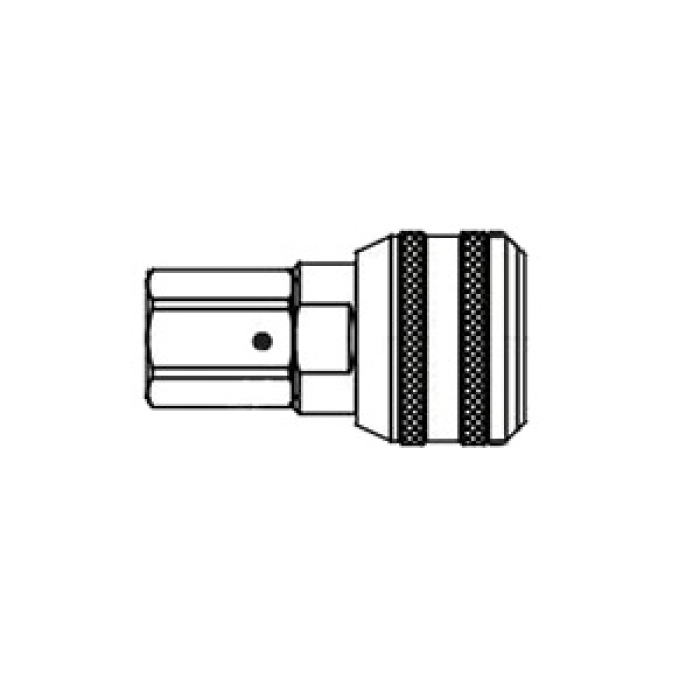

Aeroquip® 5000 Brass Industrial Interchange Coupling with Valve and Sleeve Lock, 1/2 in Female Quick Disconnect x 1/2 in NPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 5200BVSL143
  • MPN: 5200BVSL143
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Industrial Interchange Coupling with Brass Valve and Sleeve Lock, 5000 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1 in, 500 psi, Brass, Dimensions: 1.50 in Dia x 3.07 in L, Dimension Standards: ISO 6150 Series B, A-A-59439 (former MIL-C-4109)

Fitting Type      :      Coupling
Connection Size 2      :      1/2 in
Thread Size 2      :      1/2-14
Hex Size      :      1 in
Pressure Rating      :      500 psi
Material      :      Brass
Dimensions      :      1.50 in Dia x 3.07 in L
Dimension Standards      :      ISO 6150 Series B, A-A-59439 (former MIL-C-4109)
Series      :      5000
Connection 1      :      1/2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      1/2 in
Connection 2      :      1/2 in NPT
Connection Type 2      :      NPTF

Danfoss's 5000 Series industrial interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids. This series sets the industry standard for pin lock style pneumatic couplings.

  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line
  • Ball latching mechanism
  • Brass with nickel-plated steel sleeve standard body material
  • FKM seal

Applications: Industrial breathing air, general pneumatics, maintenance and repair, fluid transfer, food and beverage, machine building, oil and gas, residential
