Aeroquip® 5PP15 HSN 5PP15 | Tipco Technologies
Aeroquip® 5PP15
Send Print
  1. pin-int

Aeroquip® 5PP15

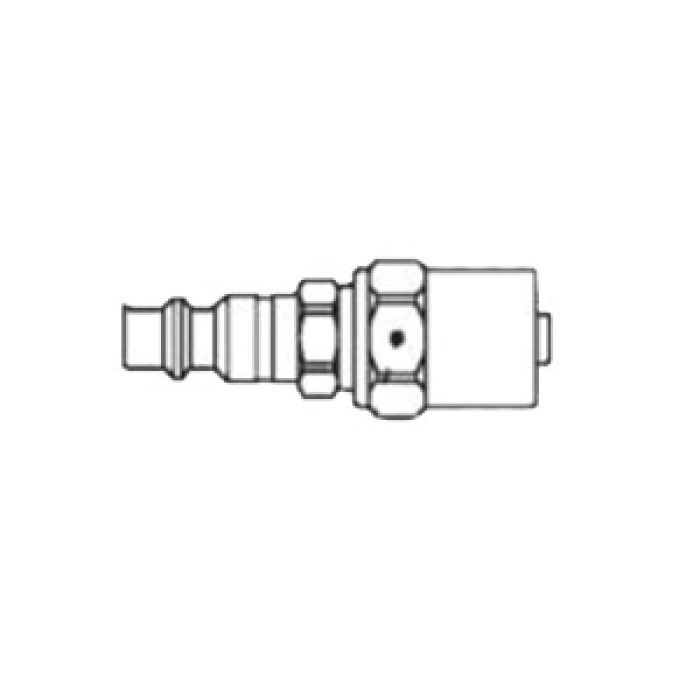

Aeroquip® 5000 Steel Coupling, 1/2 in Male Quick Disconnect x 1/2 in ID and 7/8 in OD Hose

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 5PP15
  • MPN: 5PP15
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, 5000 Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/2 in, Connection Type 2: Hose, Connection Size 2: 1/2 in ID x 7/8 in OD, Hex Size: 1 in, Steel, Dimensions: 3.62 in L x 1.12 in W

Fitting Type      :      Coupling
Connection Size 2      :      1/2 in ID x 7/8 in OD
Hex Size      :      1 in
Material      :      Steel
Dimensions      :      3.62 in L x 1.12 in W
Series      :      5000
Connection 1      :      1/2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Male
Connection Size 1      :      1/2 in
Connection 2      :      1/2 in ID x 7/8 in OD Hose
Connection Type 2      :      Hose

Danfoss's 5000 Series industrial interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids. This series sets the industry standard for pin lock style pneumatic couplings.

  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line
  • Buna-N seal material

Applications: Industrial breathing air, general pneumatics, maintenance and repair, fluid transfer
