Aeroquip® A4L
Send Print
  1. pin-int

Aeroquip® A4L

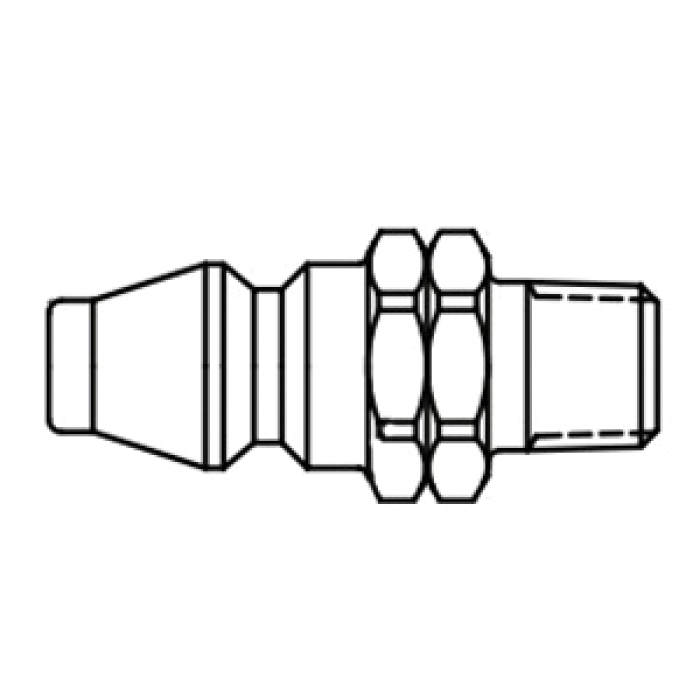

Aeroquip® 700 Brass Coupling, 1/4 in Male Quick Disconnect x 9/16 in Male UNF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN A4L
  • MPN: A4L
  • UPC: 678146201638
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, 700 Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/4 in, Connection Type 2: Threaded, Gender 2: Male, Connection Size 2: 9/16 in, Thread Size 2: 9/16-18, Hex Size: 0.56 in, Brass, Dimensions: 1.5 in L x 0.63 in W

Fitting Type      :      Coupling
Gender 2      :      Male
Connection Size 2      :      9/16 in
Thread Size 2      :      9/16-18
Hex Size      :      0.56 in
Material      :      Brass
Dimensions      :      1.5 in L x 0.63 in W
Series      :      700
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Male
Connection Size 1      :      1/4 in
Connection 2      :      9/16 in Threaded
Connection Type 2      :      Threaded

Applications: Refrigerant, agriculture, diagnostic, pneumatic, fluid transfer and hydraulic
