Aeroquip® A7

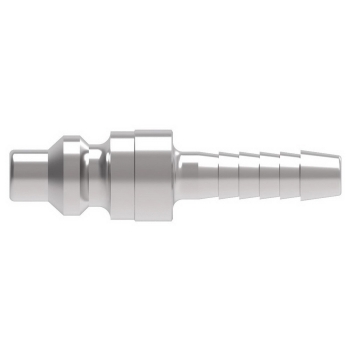

Aeroquip® 700 Brass Coupling Plug, 1/4 in Male Quick Disconnect x 1/4 in Hose

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN A7
  • MPN: A7
  • UPC: 678146201669
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling Plug, 700 Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/4 in, Connection Type 2: Hose, Connection Size 2: 1/4 in, 1500 psi, Brass, Dimensions: 2 in L x 0.56 in W x 0.56 in H, -40 to 250 deg F, For Use With: Compressed Air and Other Gases

Fitting Type      :      Plug
Connection Size 2      :      1/4 in
Pressure Rating      :      1500 psi
Material      :      Brass
Dimensions      :      2 in L x 0.56 in W x 0.56 in H
Series      :      700
Temperature Rating      :      -40 to 250 deg F
For Use With      :      Compressed Air and Other Gases
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Male
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in Hose
Connection Type 2      :      Hose

Danfoss's 700 Series quick connect couplings are designed for use in oxyacetylene service. The 600/700 Series can also be used with compressed air and other gases.

  • Safety sleeve lock prevents accidental disconnection
  • Non-interchangeable design prevents crossing of lines
  • Color-coded sleeves for easy identification
  • Buna-N seal material

Applications: Breathing equipment, welding, shipyards, general pneumatic, construction, nitrous oxide
