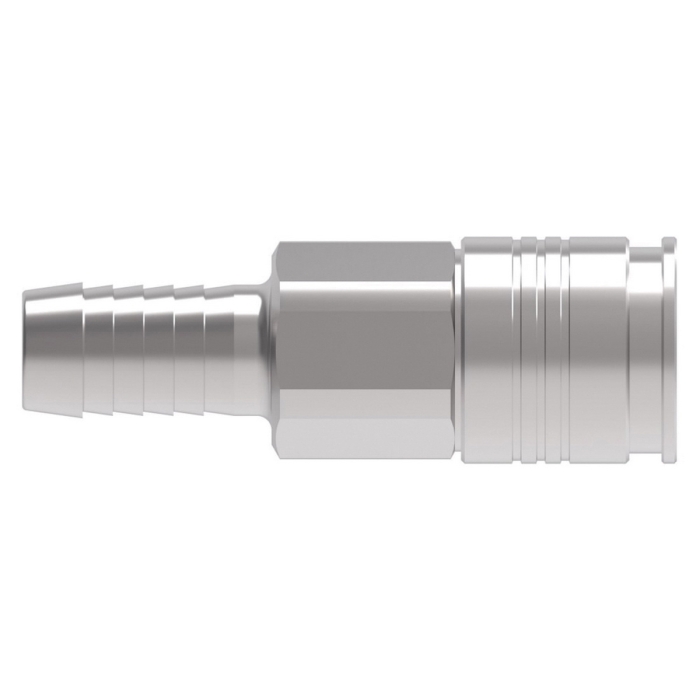

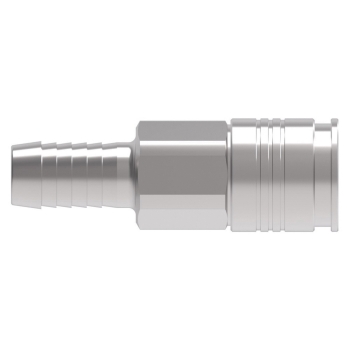

Aeroquip® Coupling, Auto-Flo 23 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: Hose Barb, Connection Size 2: 3/8 in, 150 psi, Brass, Dimensions: 2.73 in L x 0.96 in W x 0.96 in H, Dimension Standards: ISO 6150 Series B, -40 to 250 deg F
| Fitting Type | : | Coupling |
| Connection Size 2 | : | 3/8 in |
| Pressure Rating | : | 150 psi |
| Material | : | Brass |
| Dimensions | : | 2.73 in L x 0.96 in W x 0.96 in H |
| Dimension Standards | : | ISO 6150 Series B |
| Series | : | Auto-Flo 23 |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Female |
| Connection Size 1 | : | 1/4 in |
| Connection 2 | : | 3/8 in Hose Barb |
| Connection Type 2 | : | Hose Barb |
Danfoss's Auto-Flo 23/24 Series of pneumatic couplings were designed with high flow and easy automatic connection for compressed air in mind. The universal design makes the Auto-Flo an extremely flexible coupling series.
- Auto-Flo 23 is the first automatic universal quick disconnect coupling designed to operate with industrial, ARO 210 and Tru-Flate interchange plugs/males
- Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line
- Sleeve guard protects against accidental disconnection
- Buna-N seal material
Applications: Air tools, construction, general pneumatics
