Aeroquip® B4FS25F2
Send Print
  1. pin-int

Aeroquip® B4FS25F2

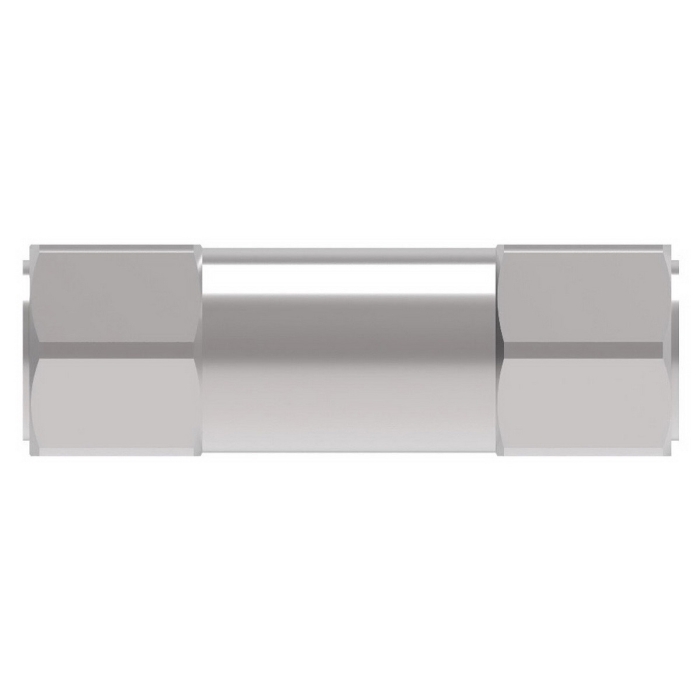

Aeroquip® FS Series Brass Flow Sensor, 1/4 in Quick Disconnect x 1/4 in FNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN B4FS25F2
  • MPN: B4FS25F2
  • UPC: 678146202284
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Flow Sensor, FS Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 3/4 in, 250 psi, Brass, Dimensions: 2.14 in L x 0.75 in W x 0.75 in H

Fitting Type      :      Flow Sensor
Gender 2      :      Female
Connection Size 2      :      1/4 in
Thread Size 2      :      1/4-18
Hex Size      :      3/4 in
Pressure Rating      :      250 psi
Material      :      Brass
Dimensions      :      2.14 in L x 0.75 in W x 0.75 in H
Series      :      FS
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPTF

Danfoss's flow sensor Series is designed to protect personnel and property in case of hose failure in compliance with federal safety regulations. Flow sensors are intended for use with compressed air.

  • Automatically shuts-off air flow to ruptured hose
  • Reduces risk of injury or damage from hose whip
  • Automatically resets after failure correction
  • Operates in any orientation
  • Compact design, economical, tamper-resistant

Applications: General industry, pneumatic tools
