Aeroquip® GD1052641

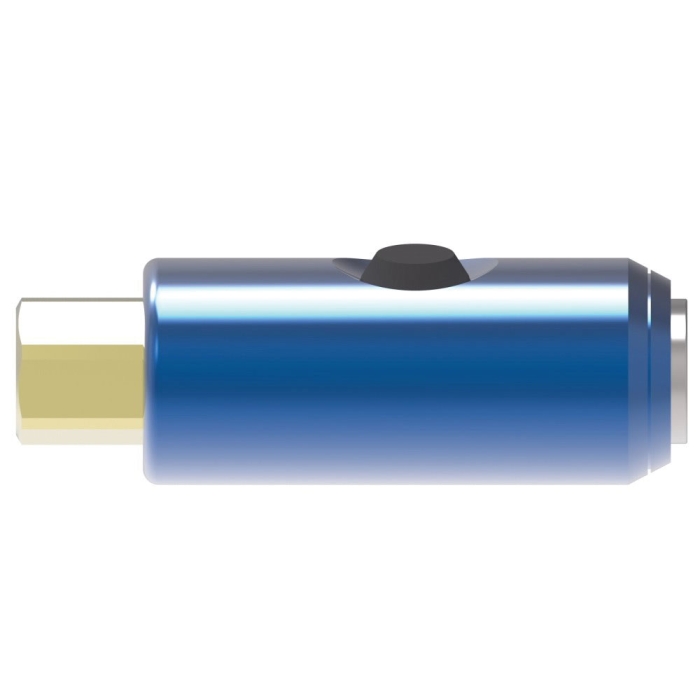

Aeroquip® Safeline Aluminum Coupling, 1/4 in Female Quick Disconnect x 1/4 in FNPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN GD1052641
  • MPN: GD1052641
  • UPC: 678146204332
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, Safeline Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/4 in, Hex Size: 0.67 in, 232 psi, Aluminum, Dimensions: 2.33 in L x 1.02 in W x 1.02 in H, Dimension Standards: ISO 6150 Series B, -4 to 212 deg F

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      1/4 in
Hex Size      :      0.67 in
Pressure Rating      :      232 psi
Material      :      Aluminum
Dimensions      :      2.33 in L x 1.02 in W x 1.02 in H
Dimension Standards      :      ISO 6150 Series B
Series      :      Safeline
Temperature Rating      :      -4 to 212 deg F
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPT

Danfoss's Safeline Series is an industrial interchange pneumatic coupling with push button safety feature designed for use with compressed air. Two-step disconnect procedure shuts off air supply and releases downstream air pressure before plug can be removed from socket/female, which prevents hose whip.

  • Safe and easy to connect and disconnect
  • Light weight, compact ergonomic design
  • Accepts 1/4 in ISO 6150 Series B and A-A-59439 plugs/males
  • Accepts all US industrial plugs/males
  • Buna-N seal material

Applications: General pneumatics, air tools, industrial plants, maintenance and repair
