Dixon® 4NS6-S
Send Print
  1. pin-int

Dixon® 4NS6-S

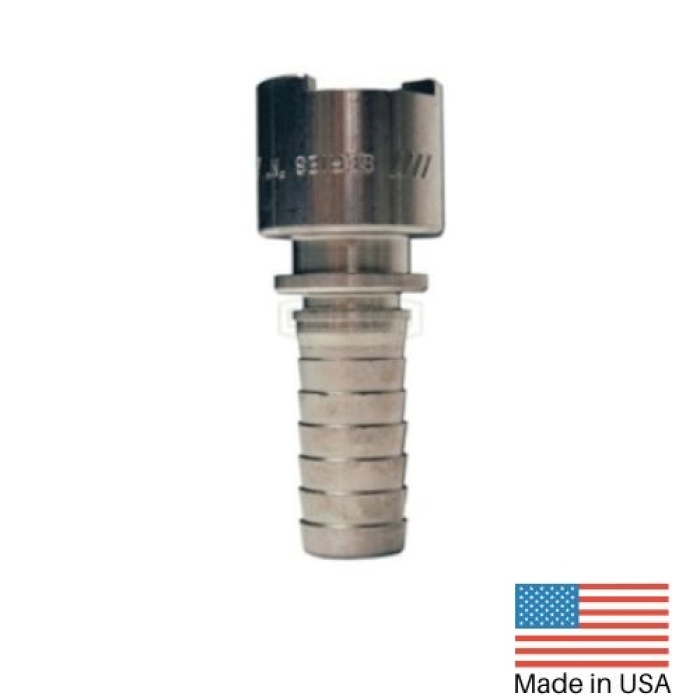

Dixon® N Series 303 Stainless Steel Pneumatic Interchange Coupler, 1/2 in Female Quick Disconnect x 3/4 in Hose Barb

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 4NS6-S
  • MPN: 4NS6-S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Pneumatic Interchange Coupler, Series: N, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/2 in, Connection Type 2: Hose Barb, Connection Size 2: 3/4 in, 500 psi, 303 Stainless Steel, Dimensions: 1.33 in OD x 3.37 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupler
Connection Size 2      :      3/4 in
Pressure Rating      :      500 psi
Material      :      303 Stainless Steel
Dimensions      :      1.33 in OD x 3.37 in L
Series      :      N
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      1/2 in
Connection 2      :      3/4 in Hose Barb
Connection Type 2      :      Hose Barb
  • Machined components are manufactured using solid bar stock
  • Nitrile (Buna-N) seals are standard
  • Bowes interchange bayonet style
  • Interchangeable with Bowes 51000 Series, National Series B, MacDonald quick action, Campbell single-lock

Standards/Certifications: Mil-A-A-50431A/C-3486 Specified

  • Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

    Safety Notes: Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination.

  • Consult hose manufacturer's catalog for hose end connection ratings.
  • If in doubt, test under controlled conditions for suitability to application.
  • Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
    • video https://www.youtube.com/watch?v=bJ0bMkzX0BY&ab_channel=DixonValve
