Dixon® 2AF2-B
Send Print
  1. pin-int

Dixon® 2AF2-B

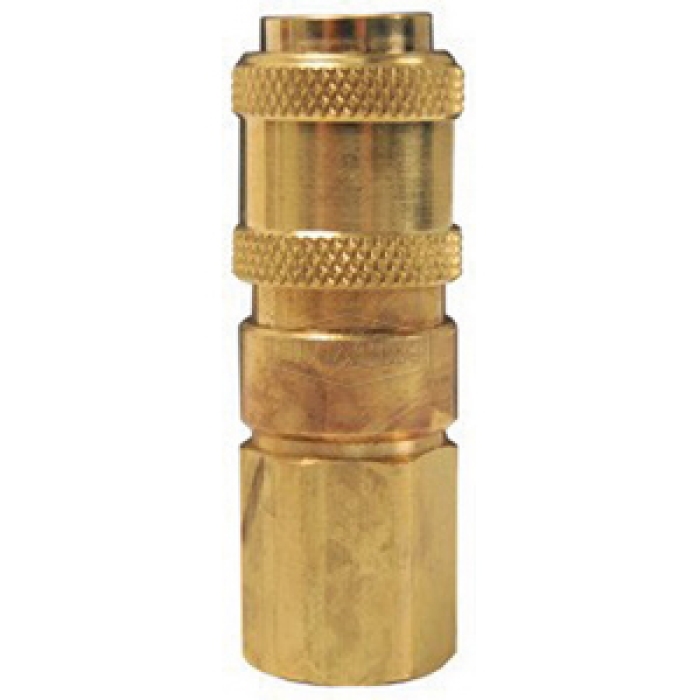

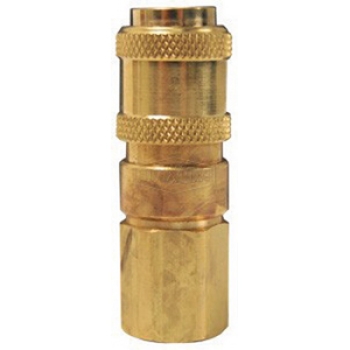

Dixon® A Series Brass Pneumatic Coupler, 1/4 in Quick Disconnect x 1/4 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 2AF2-B
  • MPN: 2AF2-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Pneumatic Coupler, A Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Hex Size: 11/16 in, 500 psi, Brass, Dimensions: 0.77 in OD x 2.7 in L

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupler
Gender 2      :      Female
Connection Size 2      :      1/4 in
Hex Size      :      11/16 in
Pressure Rating      :      500 psi
Material      :      Brass
Dimensions      :      0.77 in OD x 2.7 in L
Series      :      A
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPTF
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Couplers are constructed of brass with steel valve as standard
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Proprietary astronautics

Applications: A series couplers are intended for use in compressed air service where the convenience of one hand operation and a compact profile is desired

Safety Notes:

  • Pressure rating given at ambient temperature 70 deg F.
