Dixon® 1AS1-B

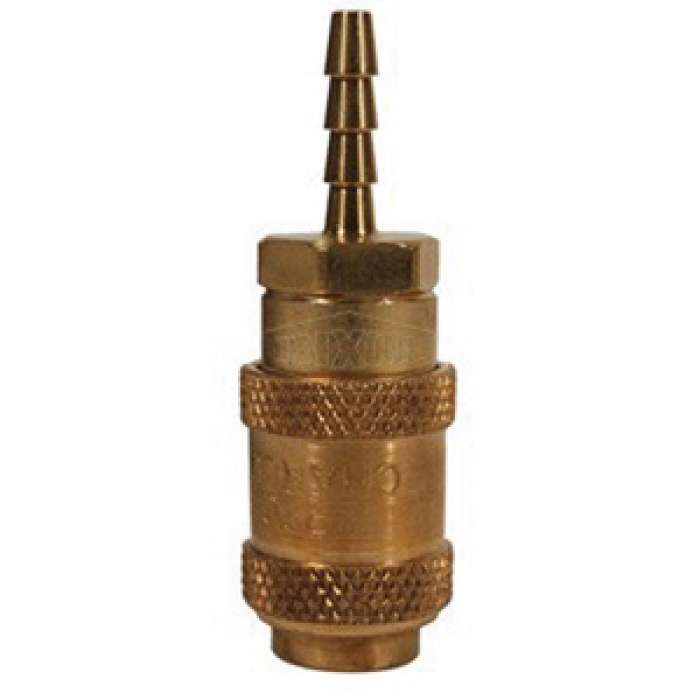

Dixon® A Series Brass Pneumatic Coupler, 1/8 in Quick Disconnect x 1/8 in Hose Barb

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 1AS1-B
  • MPN: 1AS1-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Pneumatic Coupler, A Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/8 in, Connection Type 2: Hose Barb, Connection Size 2: 1/8 in, Hex Size: 1/2 in, Brass, Dimensions: 0.64 in OD x 1.98 in L

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupler
Connection Size 2      :      1/8 in
Hex Size      :      1/2 in
Material      :      Brass
Dimensions      :      0.64 in OD x 1.98 in L
Series      :      A
Connection 1      :      1/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/8 in
Connection 2      :      1/8 in Hose Barb
Connection Type 2      :      Hose Barb
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Couplers are constructed of brass with steel valve as standard
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Compatibility and interchange to proprietary astronautics

Applications: A series couplers are intended for use in compressed air service where the convenience of one hand operation and a compact profile is desired

Safety Notes:

  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination.
  • Consult hose manufacturer's catalog for hose end connection ratings.
  • If in doubt, test under controlled conditions for suitability to application.
  • Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.
  • Pressure rating given at ambient temperature 70 deg F.
