Dixon® A1F1-B

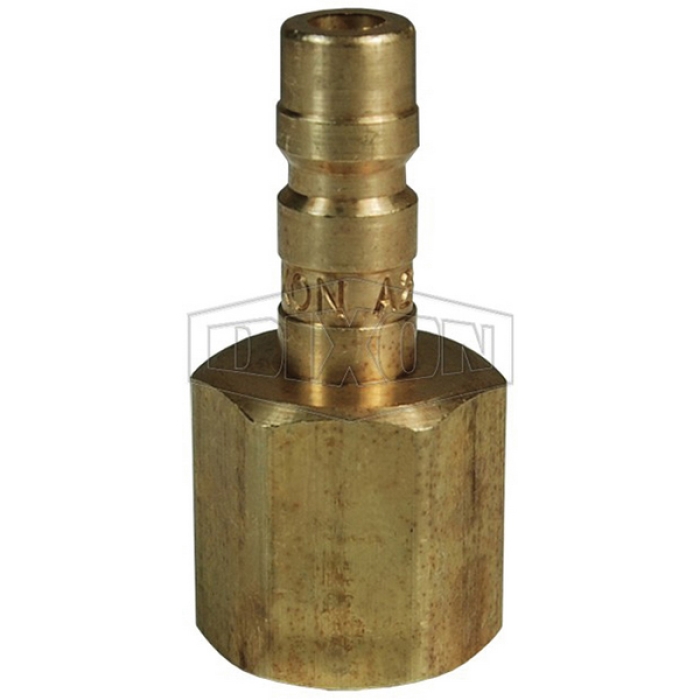

Dixon® A Series Brass Pneumatic Plug, 1/8 in Quick Disconnect x 1/8 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN A1F1-B
  • MPN: A1F1-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Pneumatic Plug, A Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/8 in, Thread Size 2: 1/8-27, Hex Size: 1/2 in, 500 psi, Brass, Dimensions: 0.58 in OD x 1.26 in L

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      1/8 in
Thread Size 2      :      1/8-27
Hex Size      :      1/2 in
Pressure Rating      :      500 psi
Material      :      Brass
Dimensions      :      0.58 in OD x 1.26 in L
Series      :      A
Connection 1      :      1/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/8 in
Connection 2      :      1/8 in NPT
Connection Type 2      :      NPTF
  • Machined components are manufactured using solid bar stock
  • Proprietary astronautics

Applications: For compressed air service where the convenience of one hand operation and a compact profile is desired

Safety Notes:

  • Pressure rating given at ambient temperature 70 deg F.
