Dixon® A2F2

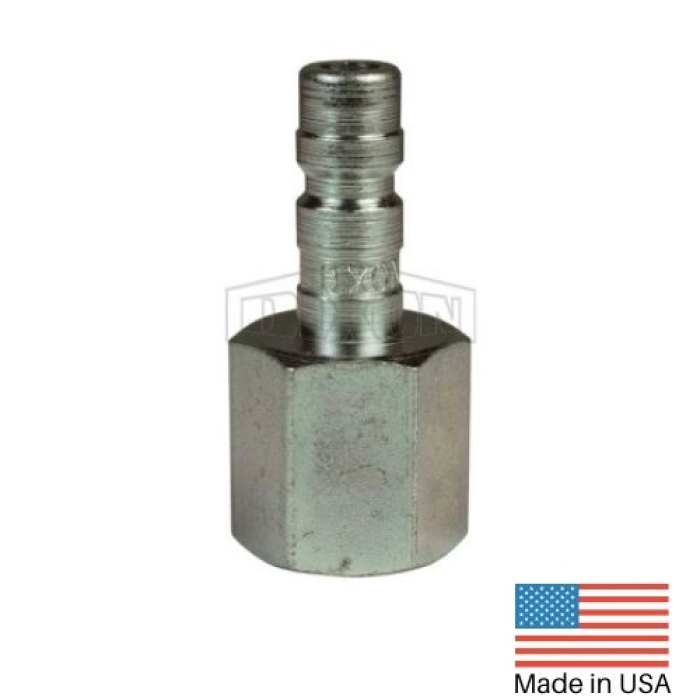

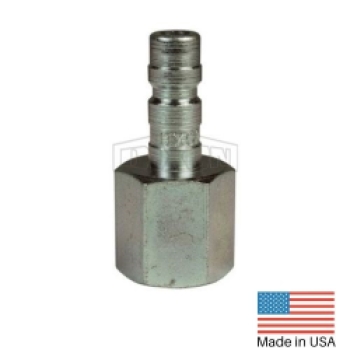

Dixon® A Series Trivalent Chrome-Plated Steel Pneumatic Plug, 1/4 in Quick Disconnect x 1/4 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN A2F2
  • MPN: A2F2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Pneumatic Plug, A Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 11/16 in, 1000 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 0.79 in OD x 1.56 in L

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      1/4 in
Thread Size 2      :      1/4-18
Hex Size      :      11/16 in
Pressure Rating      :      1000 psi
Material      :      Steel
Finish      :      Trivalent Chrome-Plated
Dimensions      :      0.79 in OD x 1.56 in L
Series      :      A
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPTF
  • Machined components are manufactured using solid bar stock
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Proprietary astronautics

Applications: For compressed air service where the convenience of one hand operation and a compact profile is desired

Safety Notes:

  • Pressure rating given at ambient temperature 70 deg F.
