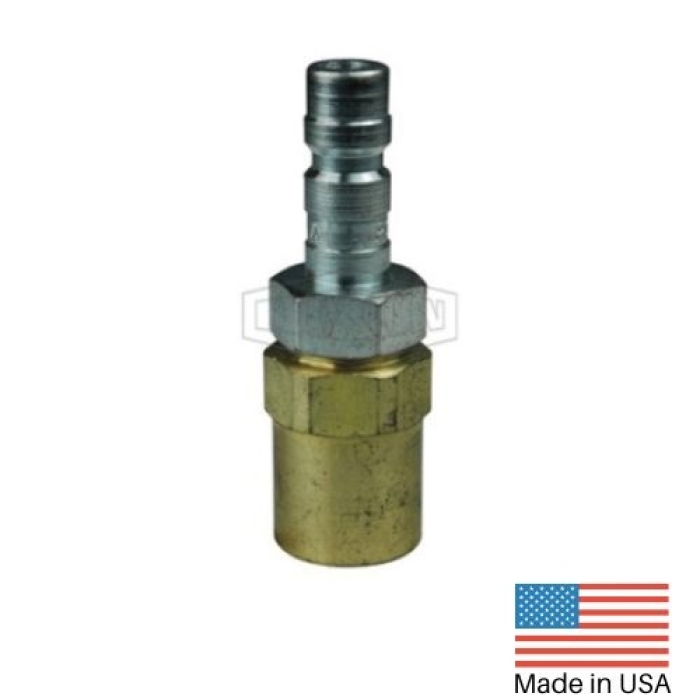

Dixon® Pneumatic Reusable Plug, A Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: Hose Barb, Connection Size 2: 1/4 x 1/2 in, Hex Size: 9/16 in, 1000 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 0.68 in OD x 1.97 in L
California residents see Prop 65 WARNINGS
| Fitting Type | : | Plug |
| Connection Size 2 | : | 1/4 x 1/2 in |
| Hex Size | : | 9/16 in |
| Pressure Rating | : | 1000 psi |
| Material | : | Steel |
| Finish | : | Trivalent Chrome-Plated |
| Dimensions | : | 0.68 in OD x 1.97 in L |
| Series | : | A |
| Connection 1 | : | 1/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 1/4 in |
| Connection 2 | : | 1/4 x 1/2 in Hose Barb |
| Connection Type 2 | : | Hose Barb |
- Machined components are manufactured using solid bar stock
- Steel componentry is plated using RoHS compliant trivalent chrome
- Interchange with proprietary astronautics
Applications: A series couplers are intended for use in compressed air service where the convenience of one hand operation and a compact profile is desired
Safety Notes:
- Pressure rating given at ambient temperature 70 deg F.
- Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination.
- Consult hose manufacturer's catalog for hose end connection ratings.
- If in doubt, test under controlled conditions for suitability to application.
- Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.
