Dixon® BR1F2-B-E-7

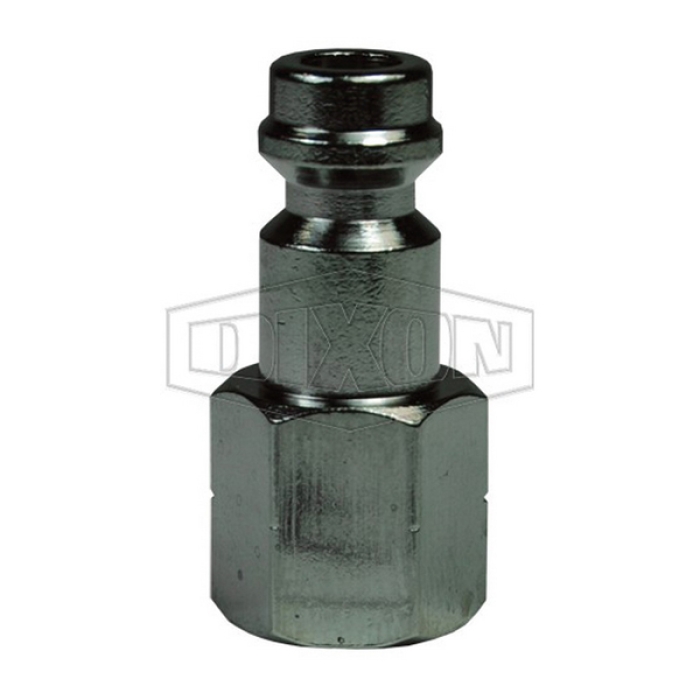

Dixon® BR Series Brass Pneumatic Interchange Plug, 1/8 in Quick Disconnect x 1/4 in FNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN BR1F2-B-E-7
  • MPN: BR1F2-B-E-7
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Pneumatic Interchange Plug, BR Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/8 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 5/8 in, 300 psi, Brass, Dimensions: 0.72 in OD x 1.33 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      1/4 in
Thread Size 2      :      1/4-18
Hex Size      :      5/8 in
Pressure Rating      :      300 psi
Material      :      Brass
Dimensions      :      0.72 in OD x 1.33 in L
Series      :      BR
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/8 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPT
  • Machined components are manufactured using solid brass bar stock
  • Machined components are plated with chrome-over-nickel plating
  • Rectus 21KA, Tomco Series SC, CEJN Series 223

Safety Notes:

  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
